Tech-Line Fix-Focus stand magnifier

£ 25,50
( excl. Shipping costs)

Print product data sheet
Product no.: AS094xx
Shipping: 3 days 3 days
Tech-Line Fix-Focus stand magnifier
Tech-Line Fix-Focus stand magnifier
Tech-Line Fix-Focus stand magnifier
Tech-Line Fix-Focus stand magnifier
Tech-Line Fix-Focus stand magnifier

World Class Optics Made in Germany

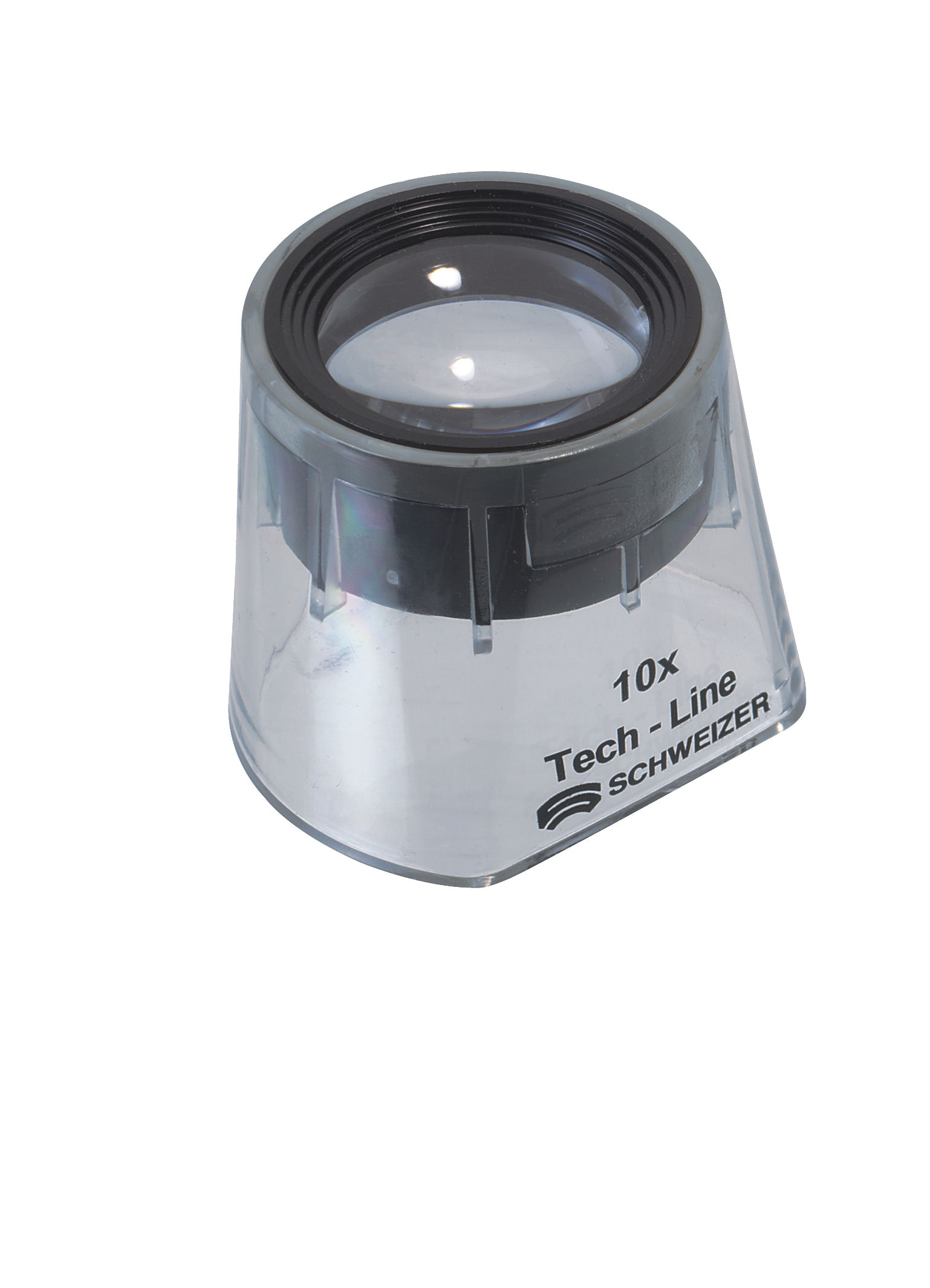

Available Magnifications: 8x or 10x

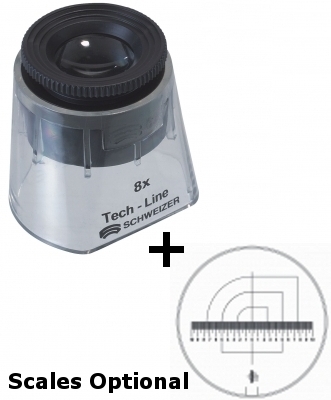

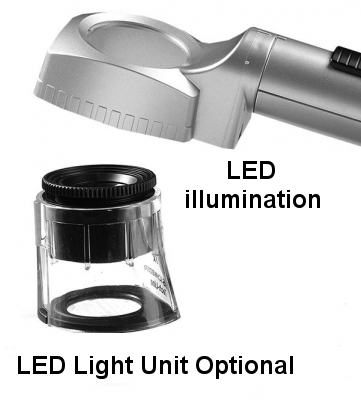

 Ideal for all planar inspections: you can either use this as a stand magnifier or install a reticle (picture 3 & 5)  to upgrade it to a sophisticated measuring magnifier with an optional LED illumination unit for contrast free light (picture 4).

Features:
Embedded in the low-reflection, shock-resistant base, the aplanatic lens system fulfills highest optical requirements. The optics are made from silicate glass, which is very scratch-resistant, has a very high resolution (very sharp!) and produces an extremely high contrast image.

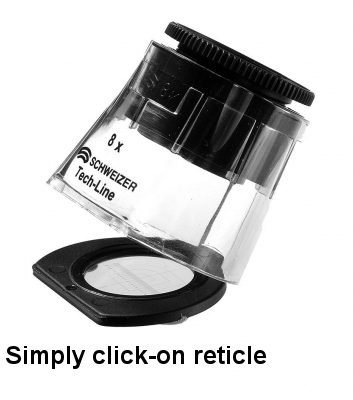

Thanks to a simple to use installation, you can slide any duo scale (reticule) you require into the transparent housing. Information on the scales/reticules can be found here ("click")

Art No.   Magni.  Diametre    Lens Type
09408     8x          30 mm        aplanatic/glass
09310     10x        30 mm        aplanatic/glass


High Professional Product Made in Germany
  • Housing/Base
      Scratch resistant
    Low reflection surface
    Shock resistant
    Measuring Scales Installable (Optional)

  • Lens/Optics
    Aplanatic lens-system
    Silicate Glass
    Scratch resistant
    High resolution (sharpness)
    High contrast image

  • Magnification
    8x 30 mm Or 10x 30mm


Tech-Line is synonymous with technically sophisticated products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use.

Discover the variety
By developing the Tech-Line Series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.

The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.

Additional performance:
  • High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
  • The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
    - All magnifiers with a silver coating are coated with a special 2-component-coating:
      Resistant to hand perspiration.
      Resistant to nearly all solvents/chemicals.
        Very hard and plane surface, scratch-resistant and easy to clean.

  • Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs (light colour approx. 6000 K).
Magnification:
8x
Art.Nr.: 09508

10x
Art.Nr.: 09510

+£ 5,00
Optional:
No Options Please

LED illumination Unit
Art.Nr.: LED Illumination Unit

+£ 30,00
Please Choose:
No Scale Please

Scale 1 - Standard

+£ 25,90
Scale 2 - Multi

+£ 25,90
Scale 3 - Angle

+£ 25,90
Scale 4 - Grid

+£ 25,90
Scale 5 - Width

+£ 25,90
