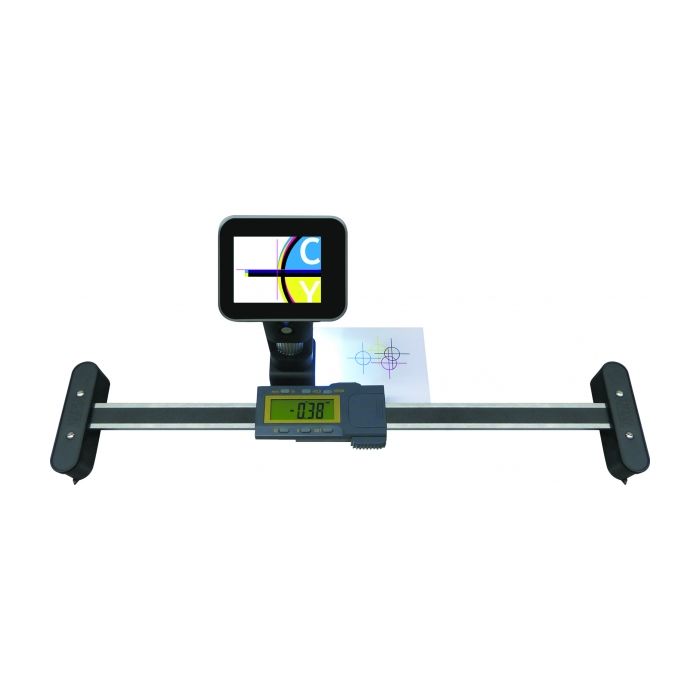

Digital Distance and Positioning Measuring System with VGA Camera and Zoom Factor+
calcActive())">
Digital distance and positioning measuring system: big LCD with clear reading, digit height 14 mm
- Electronic unit and LCD screen are mounted on the sliding parts
- Tempered and stainless steel rail
- Feet with magnets, rubber caps (non-slip) and positioning arrows
- On/off switch
- Preset, origin buttons
- Measurement unit switchable mm/inch
- 2x3 V batteries (CR2032 type), included with delivery
- VGA Camera sensor, 3.5“ colour display, 720 pixels
- Individual photos: JPG format
- Video sequences: AVI format
- Focussing with handwheel, manually switchable
- Magnification 10x, digital zoom function (in 10%-increments) up to 100x
- Display with crosshair reticle
- LED light units: • 4 LED white light and 4 LED UV-/ black light, switchable
- Light intensity can be adjusted gradually
- Rechargeable camera, mini USB port for charging cable
- Mini SD card slot with micro SD card included
- 4 GB with micro SD card adapter included for PC transfer
| Art. no. | Scale length mm / inch | Max. error tolerance (±) | Repeat accuracy (±) | Total length in mm | Weight in g |
| 4135101 | 135 / 5 | 0.01 | 0.03 | 275 | 470 |
| 4135102 | 185 / 70 | 0.01 | 0.03 | 325 | 510 |
| 4135103 | 285 / 11 | 0.01 | 0.03 | 425 | 550 |
| 4135104 | 480 / 18 | 0.01 | 0.04 | 625 | 660 |
| 4135105 | 580 / 22 | 0.01 | 0.05 | 725 | 720 |
| SKU | 4135105 | 4135104 | 4135103 | 4135102 | 4135101 |
|---|---|---|---|---|---|
| Weight | 3.210000 | 3.160000 | 3.100000 | 3.040000 | 2.990000 |
| Manufacturer | White Label | White Label | White Label | White Label | White Label |
