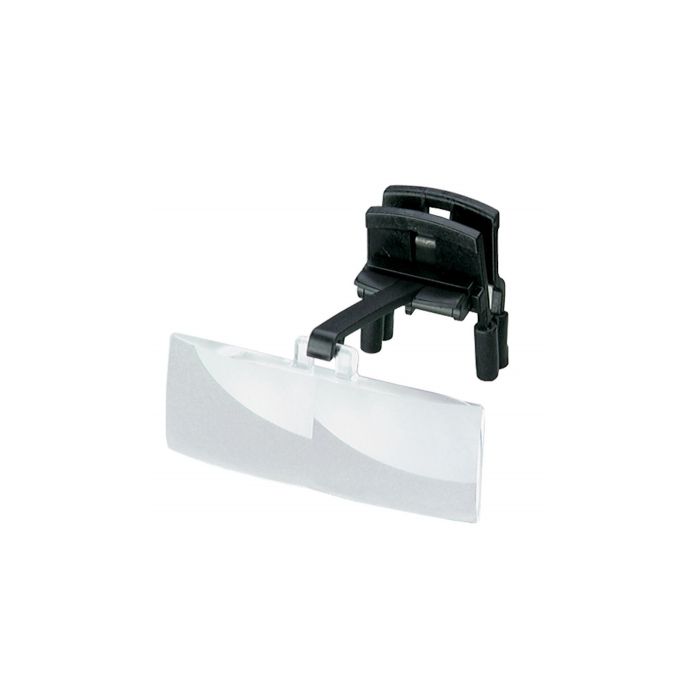

laboCLIP
- Used with distance spectacles to achieve optimum image quality.
- Lenses easily interchangeable.
- Lens sizes: monocular Ø 40 mm, binocular 74.5 x 28 mm.
- Lightweight.
- Lens clamp made from glass fibre reinforced plastic.
- Supplied with protective box.
CUSTOMER BENEFITS
- The laboCLIP system can be easily attached to the spectacle frame.
- The laboCLIP leaves both hands free for working.
- Comfortable working distance even with a high level of magnification.
- Ideal not just for work tasks but also for leisure and craft activities.
Lenses, available separately
These lenses are also available separately under the following item numbers:
laboCLIP Model:
Specifications:
| Prod. No. | Prod. No. Eschenbach | Magnification | Working distance |
|---|---|---|---|
| 1101061 | 164617 | 1.7x / 2.5 dpt / binocular | ca. 400 mm |
| 1102069 | 164620 | 2.0x / 2.5 dpt / binocular | ca. 250 mm* |
| 11020610 | 164625 | 2.5x / 5.0 dpt / binocular | ca. 180 mm |
| 1103068 | 164630 | 3x / 7.75 dpt / binocular | ca. 130 mm |
| 1104063 | 164640 | 4x / 16 dpt / monocular | ca. 55 mm |
| 110706 | 164670 | 7x / 28 dpt / monocular | ca. 32 mm |
*Shorter working distance due to integrated convergence supporting prisms.
| SKU | 1101061 | 1102069 | 11020610 | 1103068 | 1104063 | 110706 |
|---|---|---|---|---|---|---|
| Weight | 0.120000 | 0.120000 | 0.120000 | 0.120000 | 0.120000 | 0.117000 |
| Manufacturer | Eschenbach | Eschenbach | Eschenbach | Eschenbach | Eschenbach | Eschenbach |
| Magnification | 1.7x | 2x | 2.5x | 3x | 4x | 7x |
| Lens diameter Ø | - | - | - | - | 40mm | 40mm |
| Lens Type | Binocular | Binocular | Binocular | Binocular | Monocular | Monocular |
| Lens Material | PXM®-Material | PXM®-Material | PXM®-Material | PXM®-Material | PXM®-Material | PXM®-Material |
| Dimensions | 74.5 x 28 mm | 74.5 x 28 mm | 74.5 x 28 mm | 74.5 x 28 mm | 40 mm | 40 mm |
| Lens Shape | rectangular | rectangular | rectangular | rectangular | round | round |
