F+C Optik Measuring Scales in mm/radius/angle or mm/inch+
Technical details

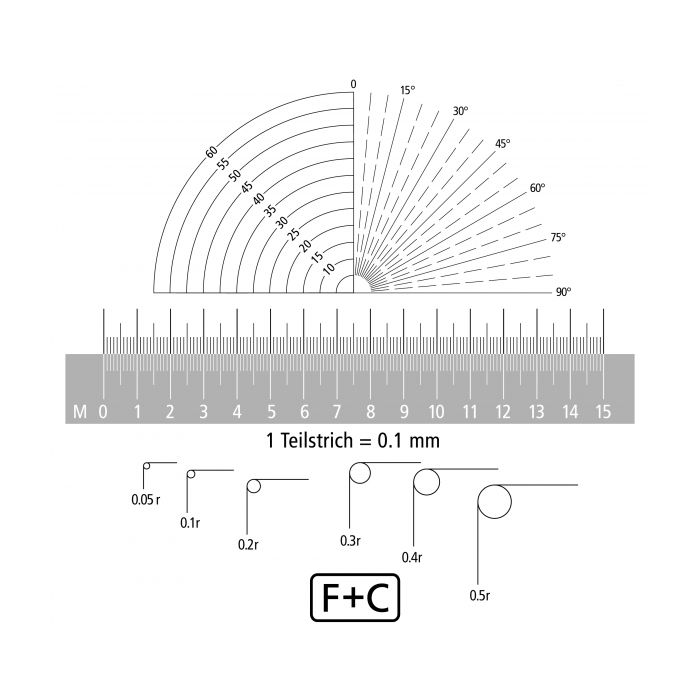

Scale mm and radius:
Image source: F+C Optik
Scale mm and radius:
- Measuring range: 15 mm
- Measuring accuracy: 0.05 mm
- Scaling: 0.1 mm
- Angle: 0° - 90° in 5° increments
- Radiuses: 0.05-0.6 mm in 0.05mm increments
- Diameter: 0.05 – 0.6 mm 0.05/0.1/0.2/0.3/0.4/0.6
- Measuring range: 15 mm and 0.6 inch
- Measuring accuracy: 0.05 mm and 0.0025”
- Scaling: 0.1 mm and 0.005”
- Reticle: in glass, with high vacuum metallized chrome scales, giving them great chemical and mechanical resistance
Image source: F+C Optik
| SKU | 97200 | 97201 | S03654 |
|---|---|---|---|
| Weight | 0.010000 | 0.010000 | - |
| Manufacturer | F&C Optik | F&C Optik | F&C Optik |
Discounts available if you combine your accessory purchase with this product.
