Eschenbach Stereo Microscope 33213 [LED] Binocular
Details:
- Stereomicroscope with LED incident illumination
- Magnification 10x or 20x, selectable by turning the lens barrel (1x or 2x)
- Lenses: handling revolver 1x and 2x, lens arrangement parallel
- Eyepiece: Wide field: 10x
- Eyepiece tube with dioptre adjustment of +/- 5 dpt

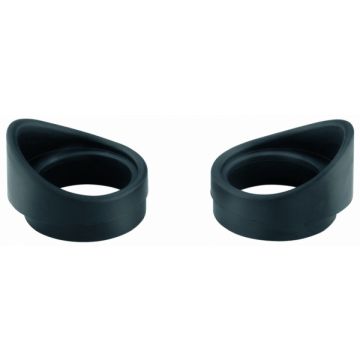

- Eyecups included
- Sharpness: coarse drive on both sides
- Stable metal tripod, column length 245mm,
- Flat base 200x150mm with black and white plastic plate for reflected light illumination
- LED front lighting ring
- Mains voltage variable from 100V-240V, output voltage 18V, 3,6W
- Dimensions 142x 93x40mm
- Inner diameter 50mm
- Lifetime 20,000 hours
- Light color 5800K
- Brightness adjustable from 0 to 15000lx
Specifications:
| enlargement | 10x | 20x |
|---|---|---|
| field of view | 19 mm | 9,5 mm |
| working distance | 84 mm | 83 mm |
| eyepiece | 10 times | 10 times |
| lens | 1-fold | 2-fold |

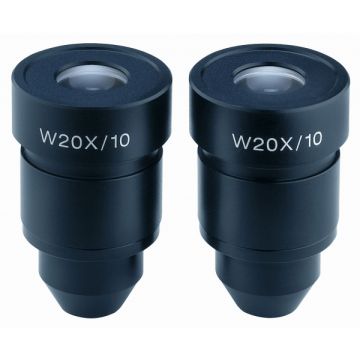

optional additional pairs of eyepieces (order under accessories):
with the following values:
| enlargement | 5x | 10x | 15x | 30x | 20x | 40x | ||
|---|---|---|---|---|---|---|---|---|
| field of view | 20 mm | 10 mm | 12,4 mm | 6,2 mm | 9,6 mm | 4,8 mm | ||
| working distance | 79 mm | 84 mm | 83 mm | 83 mm | 83 mm | 82 mm | ||
| eyepiece | 5 times | 5 times | 15 fold | 15 fold | 20 fold | 20 fold | ||
| lens | 1-fold | 2-fold | 1-fold | 2-fold | 1-fold | 2-fold |

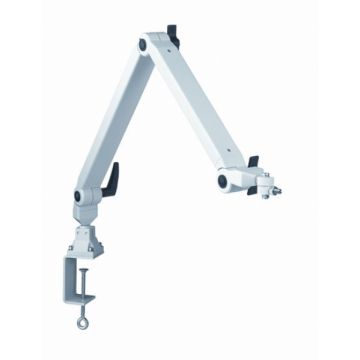

optional metal
joint arm (order under accessories): metal articulated arm with table clamp and table foot fixed to the table
Made in Germany!
(Eschenbach Manufacturer # 33213) Source : Eschenbach Optik GmbH
| SKU | 2992062 |
|---|---|
| Weight | 3.100000 |
| Manufacturer | Eschenbach |
| Magnification | 10x/20x |
| Lens Type | Biconvex |
| Lens Material | glass |
| Lens Shape | round |
| LED Colour | n/a |
| Illumination | LED |
Discounts available if you combine your accessory purchase with this product.
