Measuring Scale for PEAK Microscope #2008+
- Scale with black writing for measurements on light-colored backgrounds
- The glass scale is incorporated in a plastic ring, with which the scale can be rotated inside of the microscope
- The scales can simply be changed by unscrewing the upper part of the microscope.
- The image is reversed.
| Art. no. | PEAK Scale | Magnification | Measuring length in mm or Inch (") |
Scaling in mm or inch (") |
Additional |
| 97006 | 24 | 25x | 3.0 mm | 0.05 mm | |

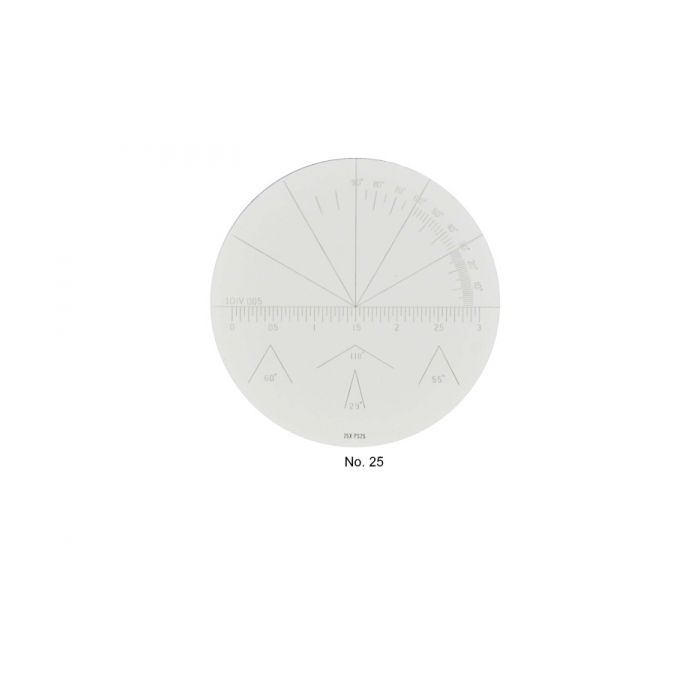

| 97010 | 25 | 25x | 3.0 mm | 0.05 mm | Different angle divisions |
| 97015 | 26 | 25x | 0.12 " | 2/1000 " | Angle divisions |
| 97007 | 13 | 50x | 1.6 mm | 0.02 mm | |
| 97012 | 14 | 50x | 1.6 mm | 0.05 mm | Different angle divisions |
| 97015 | 15 | 50x | 0.6 " | 1/1000 " | Angle divisions |
| 97008 | 34 | 75x | 1.0 mm | 0.01 mm | |
| 97013 | 35 | 75x | 1.0 mm | 0.01 mm | Different angle divisions |
| 97017 | 36 | 75x | 0.04 " | 1/1000 " | Angle divisions |
| 97009 | 44 | 100x | 0.8 mm | 0.005 mm | |
| 97014 | 45 | 100x | 0.8 mm | 0.01 mm | Different angle divisions |
| 97018 | 46 | 100x | 0.03 " | 5/10000 " | Angle divisions |
| SKU | 97007 | 97008 | 97009 | 97010 | 97012 | 97013 | 97014 | 97015 | 97016 | 97017 | 97018 | 97006 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 | 0.010000 |
| Manufacturer | Peak | Peak | Peak | Peak | Peak | Peak | Peak | Peak | Peak | Peak | Peak | Peak |
Discounts available if you combine your accessory purchase with this product.
