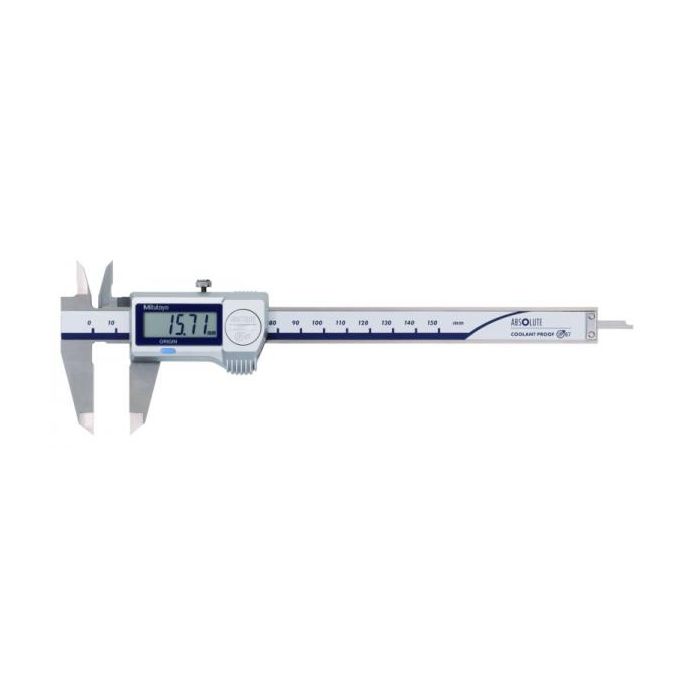

Mitutoyo Coolant Proof Caliper - Digital ABS - IP67 0-150mm

ABSOLUTE Coolant Proof Caliper SERIES 500 – with Dust/Water Protection Conforming to IP67 Level

The Mitutoyo ABSOLUTE coolant proof caliper delivers highly accurate, four-way measurement capabilities ideal for shop floor use. Measurements are shown on a larger, impact-resistant digital display.

The robust IP67 ABSOLUTE Digimatic allows for reliable measurements in a wide range of situations and offers you the following benefits:

• Excellent water and dust resistance (IP67 protection level) suitable for use during machining steps where coolants and lubricants are used
• Dustproof, complies with DIN EN 60529 and withstands temporary complete immersion in water without damage
• No new origin setting needed after power-on (ABS scale)
• Extraordinarily long battery life
• Switch on through slider movement

The Mitutoyo ABSOLUTE coolant proof caliper delivers accurate, repeatable outside, inside, depth and step measurements with speed in an ergonomic design. The slide and jaws are made of hardened stainless steel and provide a durable, easy-to-read LCD display. Suitable for use in environments with coolant, water, dust and oil.

• Available in metric and inch/metric models
• Available with or without SPC output
• Larger display digits (9.0 mm)
• Tool-free battery cover
• ABSOLUTE scale eliminates origin reset
• No reset required after display loss
• Stainless steel construction for durability
• SPC output for data transfer
• Functions: Auto On/Off, Origin, Zero, Data Output, inch/mm
• Error alarm
• IP67 protection for harsh environments
• No need to clean the scale
• Supplied in plastic case

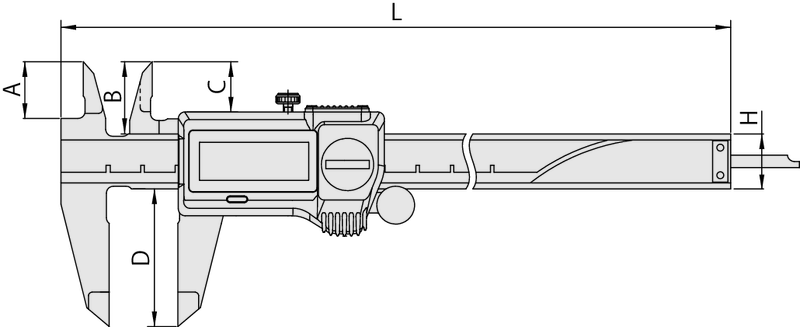

Technical details
