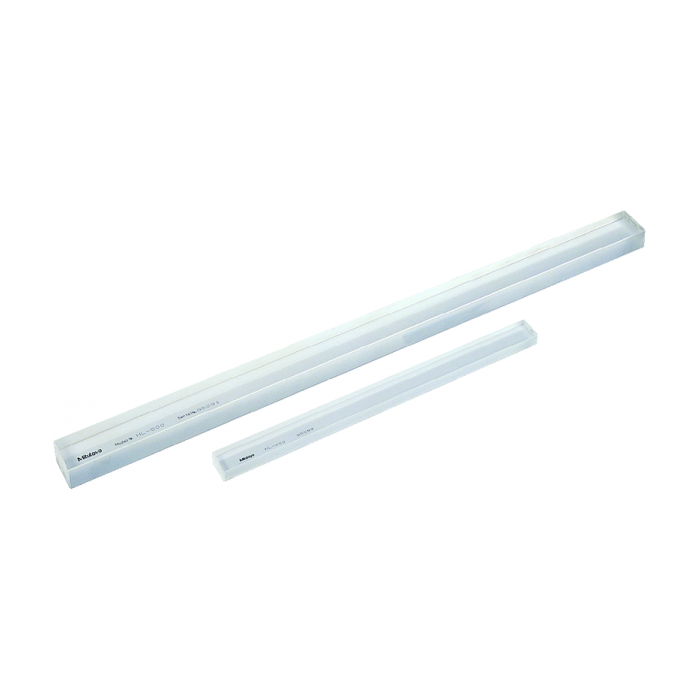

Mitutoyo Low Expansion Glass Scale, JCSS Certificate+

SKU
414513, 414514, 414515
Size
N/A

Associated Products

DAkkS-Calibration Certificate up to 200mm
DAkkS-Calibration Certificate up to 200mm
97974_en
£101.68
Calibration Certificate up to 500mm
Calibration Certificate up to 500mm
97975_en
£90.72
Calibration Certificate up to 1000mm
Calibration Certificate up to 1000mm
97976_en
£108.77
Calibration Certificate up to 2000mm
Calibration Certificate up to 2000mm
97977_en
£130.03

These high precision glass scales offer you the following benefits:

  • They are manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
  • You can use them as a standard for calibrating graduating scales, with high accuracy.

The high-precision Mitutoyo Low-Expansion Glass Standard Scale is manufactured using the Mitutoyo leading-edge Linear Scale production technology, which ensures high accuracy as a standard for calibrating graduation scales in three dimensions. The low-expansion glass material provides an excellent thermal expansion coefficient for better accuracy, making these scales ideal for calibrating graduated scales.

  • Available in Metric only
  • Available in two different LxWxT dimensions
  • Available ranges: 250mm and 500mm
  • Low expansion glass improves coefficient of linear expansion to 8 x 10^-8/℃
  • Low expansion glass scales have graduations without labeled units
  • High accuracy guaranteed as a standard for calibrating graduated scales
  • Inspection Certificate included
  • JCSS calibration certificate included for 414513 and 414515
SKU 414513 414514 414515
Weight 1.470000 2.860000 2.840000
Manufacturer Mitutoyo Mitutoyo Mitutoyo
Size N/A N/A N/A
Discounts available if you combine your accessory purchase with this product.
