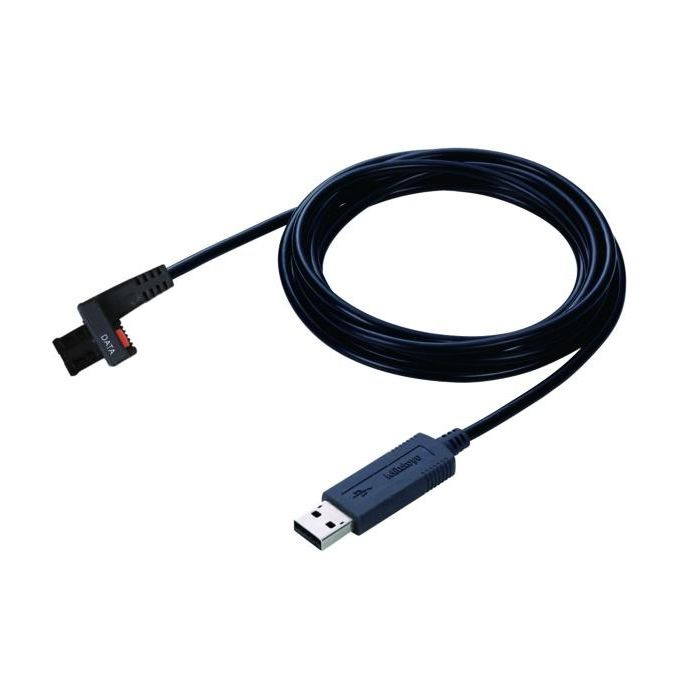

Mitutoyo USB Input Tool Direct (Digimatic USB) Digi/Digi2, Straight, with Data Button
This input tool allows you to directly connect Digimatic measuring devices to a USB interface, without needing additional software.
Measurement data is converted into keyboard codes, enabling interaction with any program such as Microsoft® Excel® working with keyboard entries (HID).
By adding the optional USB-ITPAK software the following additional features are made available.
- Fixed COM assignment in Microsoft® Windows® as channel identification (VCP).
- Creation of worksheets and multi-channel input for measurement values to Microsoft® Excel®.
- Timed data requests.
- 20 Cables can be cascaded via a standard USB hub.
Mitutoyo Prod. No.: 06AFM380C
| Model: | C |
| Remarks: | USB Input Tool Direct Cable Straight With Data Switch (2m) e.g. for Standard Absolute Caliper |
| Cable length: | 2 m |
| Output: | USB HID and VCP (with optional software USB-ITPAK) |
| OS compatibility: | Windows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®/7 (32bit,64bit), Windows® 8, 8 .1, 10 (32bit,64bit) |
| Max connectable devices: | Microsoft® Windows® 2000, XP: 100 cables, Windows® Vista®, 7, 8, 8. 1, 10: 20 cables |
| Type: | Digimatic USB Cable |
| SKU | 99121 |
|---|---|
| Manufacturer | Mitutoyo |
| Weight | 0.150000 |
