Peak #2003 SA0 - Linen Tester Magnifiers+

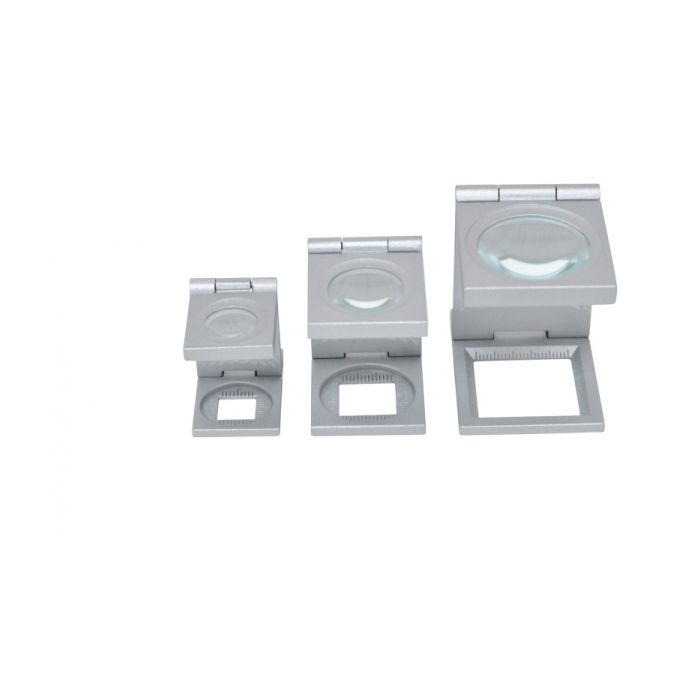

Peak SA0 Linen tester series with bi-convex glass lense and metal frame made of silver-coloured aluminium. Optimally produced hinges guarantee long service life. Magnification factor of 6x, 7x, 9x with a large visible area of 25 x 25 mm.
Art. Nr. |
1409070 | 1407071 | 1406072 |
| Peak Prod. No. | SA0-1209 | SA0-3407 | SA0 -1006 |
| Magnification | 9x | 7x | 6x |
| Lens diameter | 10mm | 15mm | 17mm |
| Dimensions (open) LxWxH (mm) | 35x23x35 | 44x30x41 | 53x38x51 |
| Dimensions (closed) LxWxH (mm) | 35x23x10 | 44x30x12 | 37x28x14 |
| Weight | 15g | 26g | 42g |
| Base Opening (mm) | 10x10mm | 15x 15mm | 25x25mm |
| Length of scale (mm) | 10x10mm | 15x 15mm | 25x25mm |
| Division of scale (mm) | 1 mm | 1 mm | 1 mm |
| SKU | 1409070 | 1407071 | 1406072 |
|---|---|---|---|
| Weight | 0.020000 | 0.030000 | 0.050000 |
| Manufacturer | Peak | Peak | Peak |
| Magnification | 9x | 7x | 6x |
| Lens diameter Ø | 10mm | 15mm | 17mm |
| Lens Type | Biconvex | Biconvex | Biconvex |
| Lens Material | glass | glass | glass |
| Scale Unit | mm | mm | mm |
| Scale Length | 10mm | 15mm | 15mm |
| Scale Graduation | 1mm | 1mm | 1mm |
| Scale Included | Yes | Yes | Yes |
| Height [mm] | 35 | 41 | 51 |
| Width [mm] | 23 | 30 | 38 |
| Length [mm] | 35 | 44 | 53 |
Discounts available if you combine your accessory purchase with this product.
