Peak #2003 WA3 - Linen Tester Magnifier Aplanatic+

PEAK
Magnification: 3x, 4x

Out of stock

    Peak Linen Testers are robust magnifiers made for industry with many applications, the most traditional being for inspecting cloth. A long lasting quality product made in Japan.

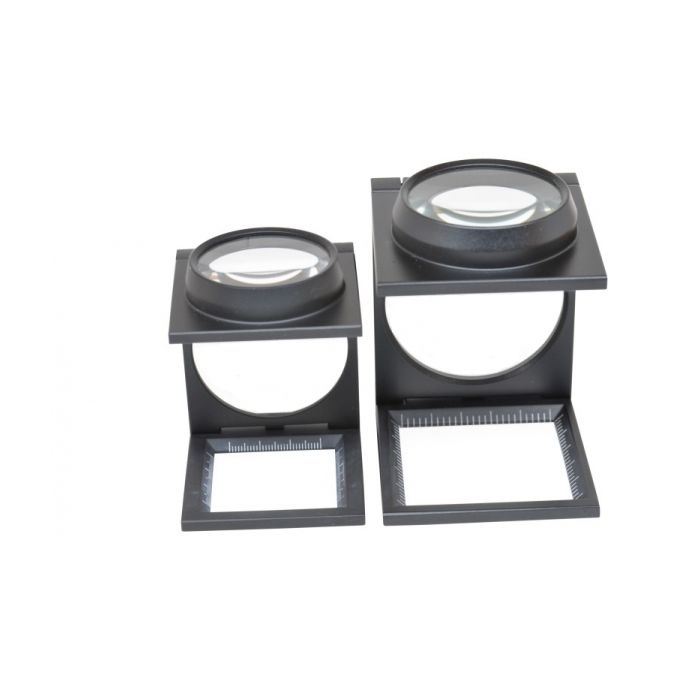

    PEAK Linen Tester Series WA3
    • aplanatic (distortion free) glas lens (polished)
    • frame made of aluminum, matt black
    • back of frame has opening, for extra light or space for tools
    • high quality spring fold
    • packaged in white box, wax paper wrapped

     Technical Data


    Product Number

     1404070 1403070
    PEAK-Number WA3-1504 WA3-2003
    Magnification 4x 3x
    Lens diameter 40mm 46mm
    Dimensions open (LxWxH) mm 68x57x79 85x67x96
    Dimensions folded  (LxWxH) mm 35x23x17 44x30x23
    Weight 90g 145g
    Foot cut-out area (mm) 40 x 40mm 52 x 52mm
    Foot / scale length (all sides) 30 x 30mm 50 x 50mm
    Scale division 1mm 2mm
    SKU 1404070 1403070
    Weight 0.100000 0.170000
    Manufacturer Peak Peak
    Magnification 4x 3x
    Lens Type Aplanatic Aplanatic
    Lens diameter Ø 40mm 46mm
    Lens Material glass glass
    Scale Included Yes Yes
    Scale Metric mm mm
    Scale Length 30mm 50mm
    Scale Graduation 1mm 2mm
    HousingMaterial Metal Metal
    Height [mm] 79mm 85
    Width [mm] 57mm 67
    Length [mm] 68mm 96
