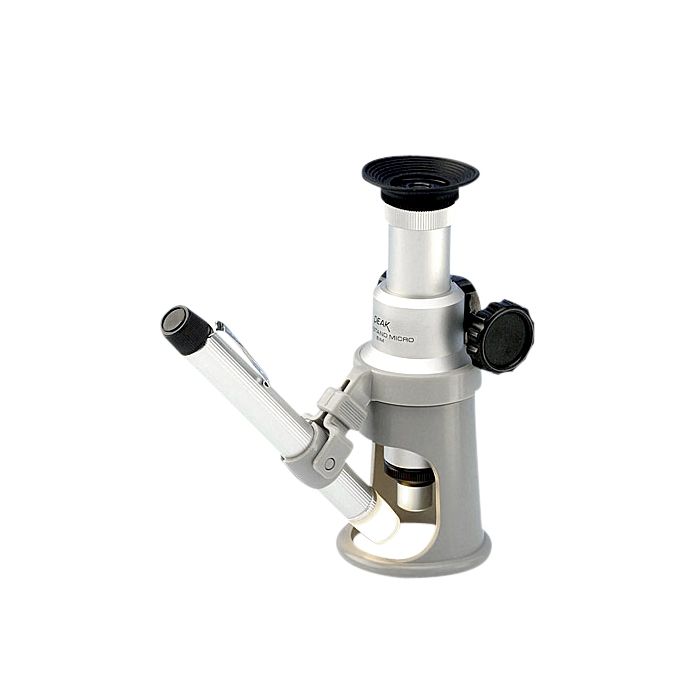

PEAK #2054 Microscope+

The PEAK 2054 measuring microscopes differ from the 2034 series in that they have an aluminium base and modified focusing mechanism. Quick focusing with hand wheel and rack-and-pinion drive provides a significant advantage on active production lines. The short light path through the microscope makes the object appear reversed. A sturdy aluminium base ensures stability even for the standard version, but if desired an acrylic base is available to improve the visibility of the point to be checked.

Seven types of lenses are available: 2x, 4x, 6x, 10x, 15x, 20x and 30x. The eyepiece has a magnification factor of 10x and the focal plane is equipped with a scale. Contamination of the scale with dust is not possible thanks to the Huygens design with focal plane in the lens system. The lens closest to the eye in the ocular can be moved by turning the adjustment ring, so that the scale can be adjusted to match the eye correction of the observer. The eyepieces associated with each magnification factor (objective lense) can be replaced by simply pulling out. If additional lenses are to be used for visually checking purposes only then additional eyepiece are not required, otherwise it is important to order the associated eyepiece with each additional lense.

The side illumination allows measurements on dark surfaces or in darkened rooms. Two 1.5 Volt AA batteries are required for operation. The microscope is supplied in a padded transport box offering secure transport space for four additional lenses available as accessories.
