Peak #2066 - Measuring Magnifier - [10x, 15x, 20x] - Zoom+
A standard scale/reticule is included (picture 4), length 12 mm, scale/division in millimeters: 0.1 mm, and inches 0.005". The Peak Zoom Magnifier is delivered as shown in picture 3, complete with box/pouch, protective cap and cleaning cloth.
For improved illumination, an optional battery-powered lighting device is available. It blocks unwanted light and ensures a firm grip.

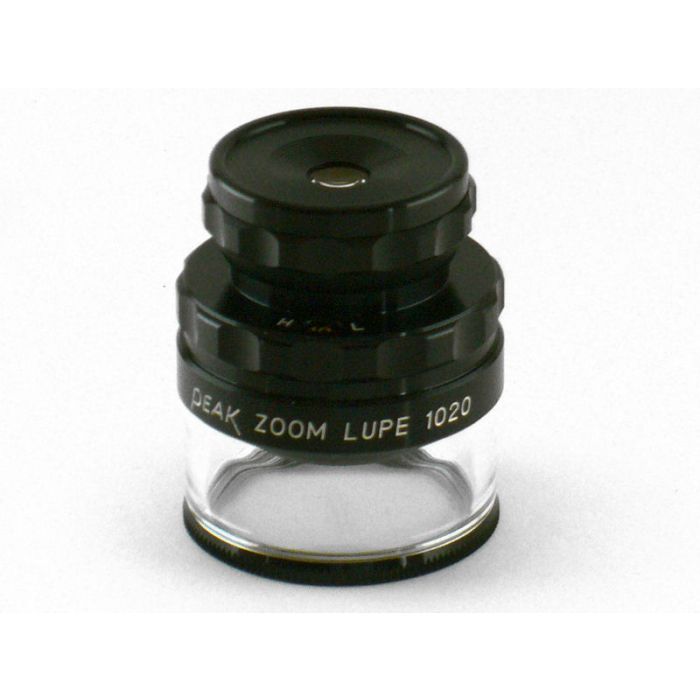

A timeless magnifier from Peak. The black aluminum housing provides durability. Smooth focusing via fine focus ring and click-stop system for selecting 10x, 15x or 20x magnification.
Specifications:
- Magnification: 10x, 15x, 20x
- Field of view: Ø13 to Ø7 mm
- Diopter adjustment: +2.5D to -5D
- Size: 45 x 65 mm
- Weight: 95 g
- Model: 2044-816
Spare Parts
- Please quote model number for spares
- Light holder for zoom magnifier
- Battery powered: 2 x 1.5V
Before use, adjust the lower ring to select magnification, then adjust the eyepiece ring for a clear view of the scale.
| SKU | 289315 |
|---|---|
| Weight | 0.170000 |
| Manufacturer | Peak |
| Magnification | 10/15/20x |
| Lens Type | Achromatic |
| Lens Material | glass |
| Lens diameter Ø | 13-7mm |
| Lens Shape | round |
| LED Colour | n/a |
Discounts available if you combine your accessory purchase with this product.
