Specwell Monocular [4x12] + Microscope [12x or 16x] Stand+

SPECWELL
Magnification: 12x, 16x

In stock

Grouped product items

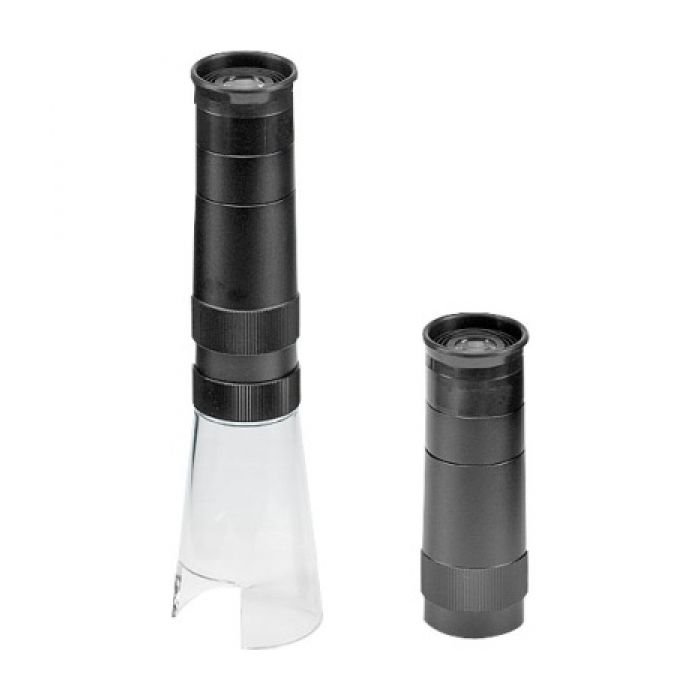

    • The monocular is supplied with a stand and a close-up lens already attached. When the close-up lens is screwed onto the monocular, it transforms into an excellent microscope.
    • Monoculars are commonly used in industry as positioning aids. If the working distances without the close-up lens are too large, or the magnification is not sufficient, the close-up lens can be screwed directly onto the monocular without the acrylic stand. This achieves the microscope’s field of view, magnification, and working distance.
    • These monoculars are not only used in technical applications with a close-up lens. Thanks to their extremely high light transmission, true-image display, and strong magnification, they can also be used as visual aids.
    • The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and has an anti-reflection coating.
    • The image is true to life.
    • The monocular can be focused.

    Delivery includes: Monocular with lens mounted on acrylic stand, high-quality box, and strap.

    Art. No.: 421215 421615
    Monocular with long stand Monocular with short stand
    Magnification without stand
    Magnification at 220 mm distance 11× 11×
    Magnification with stand 12× 16×
    Working distance, monocular (min.) 220 mm 260 mm
    Working distance, microscope (min.) 60 mm 50 mm
    Field of view at 1,000 m 219 m 219 m
    Field of view at 220 mm 35 mm 35 mm
    Field of view with close-up lens 16 mm 13 mm
    Dimensions without stand 50 × 31 mm 50 × 31 mm
    Dimensions with stand 135 × 45 mm 135 × 45 mm
    Weight without stand 56 g 56 g
    Weight with stand 89 g 89 g
    Objective aperture 12 mm 12 mm
    Visual angle 12.5° 12.5°
    Relative brightness 9 9
    Pupil diameter 3 mm 3 mm
    SKU 421215 421615
    Weight 0.240000 0.150000
    Manufacturer Specwell Specwell
    Magnification 12x 16x
    Lens Type Monocular Monocular
    Lens Material glass glass
