Specwell monocular 8x30, with close-up lens (microscope): 25x, integrated scale

The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
The image is true-sided.
The monocular can be focused.

Delivery includes: monocular with lens screwed to acrylic stand, high-quality box and strap.

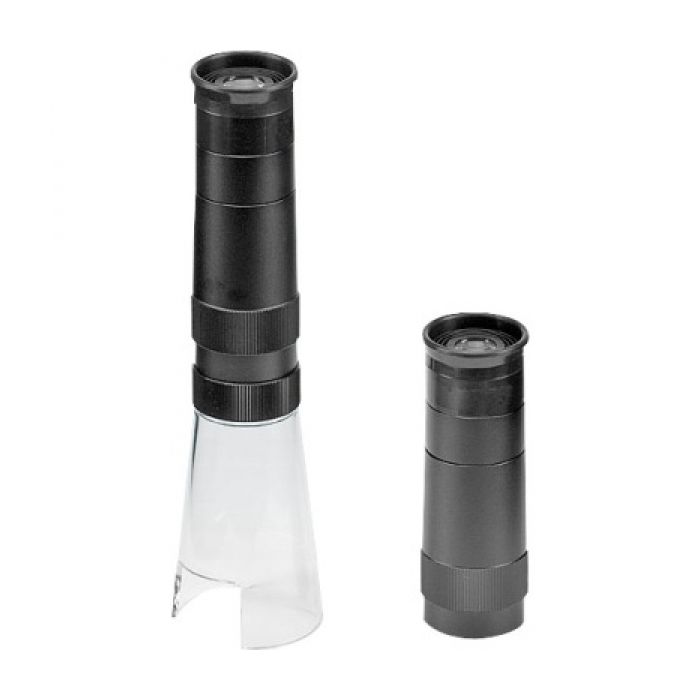

	Monocular with long stand
Magnification monocular without stand	8x
Magnification monocular, distance 300mm	13.5x
Magnification monocular with stand	25x
Working distance monocular (min.)	600mm
Working distance microscope (min.)	66mm
Visual field monocular, distance 1.000m	149m
Visual field monocular, distance 300mm	72mm
Visual field with close-up lens	12mm
Dimensions monocular without stand	130x42mm
Dimensions monocular with stand	228x45mm
Weight monocular without stand	170g
Weight monocular with stand	228g
Objective aperture	30mm
Visual angle	8.5°
Relative brightness	14
Pupil diameter	3.75mm

SKU

4225156

Manufacturer

Specwell

Magnification

25x

Lens Type

Monocular

Lens Material

glass

Lens Shape

round

LED Colour

n/a
