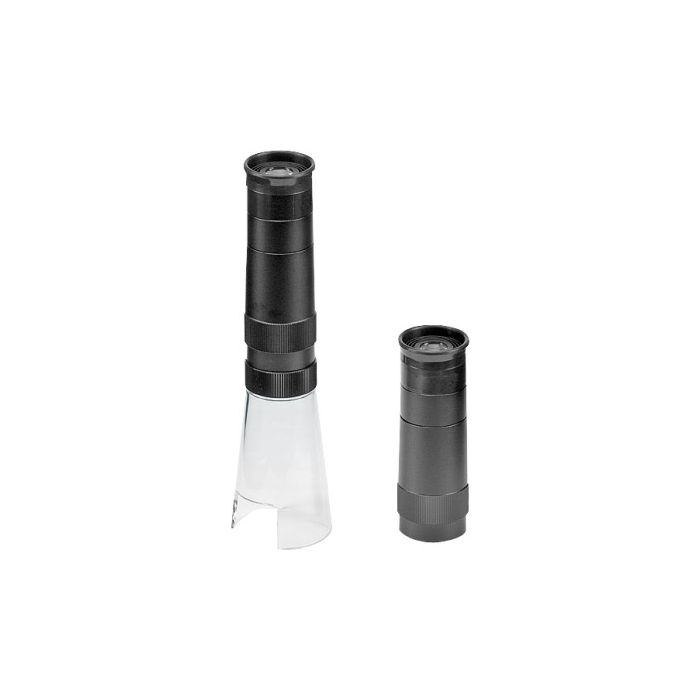

Specwell Monocular [8x20] + Microscope [25x] Stand - with Scale
- The monocular is delivered with a stand and a close-up lens already attached to it. By screwing the close-up lens on the monocular, you get an excellent microscope.
- Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
- These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
- The monocular lens system (ocular and objective) is achromatic (no chromatic aberration) and is antireflex coated.
- The image is true-sided.
- The monocular can be focused.
| Monocular with long stand |
|
| Magnification monocular without stand | 8x |
| Magnification monocular, distance 300mm | 17.5x |
| Magnification monocular with stand | 25x |
| Working distance monocular (min.) | 300mm |
| Working distance microscope (min.) | 70mm |
| Visual field monocular, distance 1.000m | 113m |
| Visual field monocular, distance 220mm | 25mm |
| Visual field with close-up lens | 9mm |
| Dimensions monocular without stand | 91x32mm |
| Dimensions monocular with stand | 172x45mm |
| Weight monocular without stand | 76g |
| Weight monocular with stand | 110g |
| Objective aperture | 20mm |
| Visual angle | 7° |
| Relative brightness | 6.2 |
| Pupil diameter | 2.5mm |
| SKU | 4225154 |
|---|---|
| Weight | 0.270000 |
| Manufacturer | Specwell |
| Magnification | 25x |
| Lens Type | Monocular |
| Lens Material | glass |
| Lens Shape | round |
Discounts available if you combine your accessory purchase with this product.
