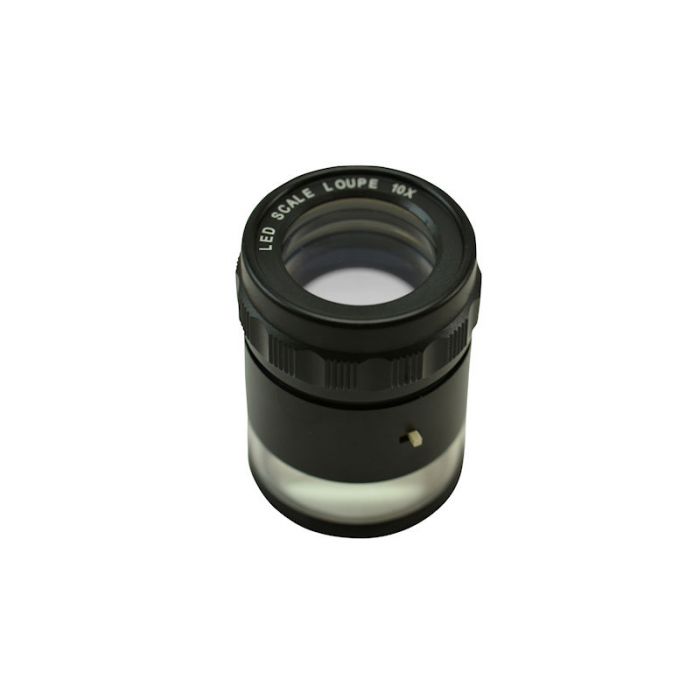

Measuring Magnifier [10x] with LED Ring+ Toggleswitch
- Magnification 10x,
- 8 LEDs integrated in the housing ring for bright, high-contrast illumination of the measuring field,
- White switch on the housing to turn LED illumination on/off
- Achromatic lens system for color-correct, distortion-free imaging,
- Stepless focusing,
- Clear, distortion-free image of the object,
- Free light entry around the object under inspection
- Lenses are anti-reflection coated
Included in delivery:
- 4 batteries (LR 396)
- Standard measuring scale
- Plastic case with belt loop
Technical data:
- Measuring range scale: 30 mm
- Scale division: 0.1 mm
- Field of view: Ø34 mm, effective working field: Ø20 mm
- Dimensions: Ø46 x 45 mm
- Weight (with protective cap): 116 g
| SKU | 2810181 |
|---|---|
| Weight | 0.150000 |
| Manufacturer | White Label |
| Magnification | 10x |
| Lens Type | Achromatic |
| Lens Material | glass |
| Lens diameter Ø | 34mm |
| Lens Shape | round |
| LED Colour | n/a |
| Illumination | LED |
