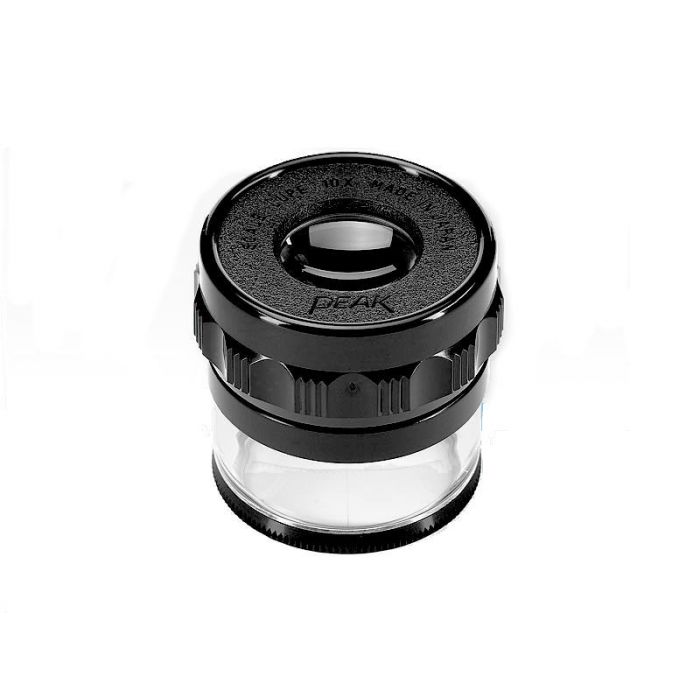

Peak #1983

The special feature of the 1983 measuring magnifier is the extremely large field of view and measuring area in relation to the 10x magnification. The optical system consists of four lenses subdivided into two groups. Fifteen different black scales and fourteen white scales are available for these measuring magnifiers (see overview): These magnifiers are coated to prevent reflection.

Specifications:

• Magnification 10x
• Achromatic glass lens
• Anti-reflex
• Focussable
• Ocular 20mm
• Standard scale included (30mm/1mm)
• Field of view Ø 32mm
• Dimensions: Ø 46 x 44mm
• Weight 74g
• Pouch included
