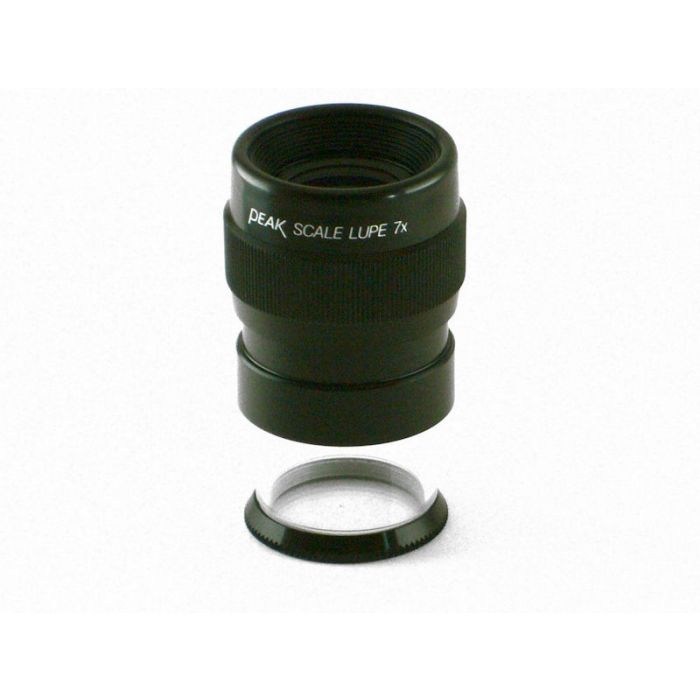

Peak #1975 Measuring Magnifier - 7x 24mm - Focus
The achromatic optics consist of three lenses in two groups. 13 different scales are available for this Peak magnifier (1975) in black text or 3 scales available in white text (black background). The optics have been treated with an anti-reflex coating.
Specifications:
- Magnification 7x
- Achromatic optical system (3 lenses in 2 groups)
- Field of view: Ø24 mm
- Dimensions: 36 x 62 mm
- Weight: 52 grams
- Fine focus
- Perfect illustration of object - distortion free
- Light admitted through transparent body
- Standard scale/reticule included (pic 3) (scale division 0.1 mm, length 10 mm)
| SKU | 2807151 |
|---|---|
| Weight | 0.070000 |
| Manufacturer | Peak |
| Magnification | 7x |
| Lens Type | Achromatic |
| Lens Material | glass |
| Lens diameter Ø | 24mm |
| Lens Shape | round |
| LED Colour | n/a |
Discounts available if you combine your accessory purchase with this product.
