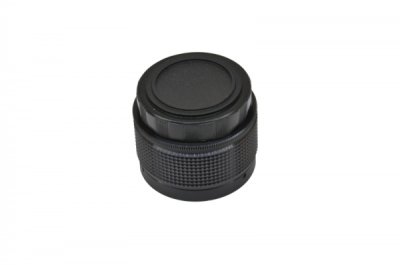

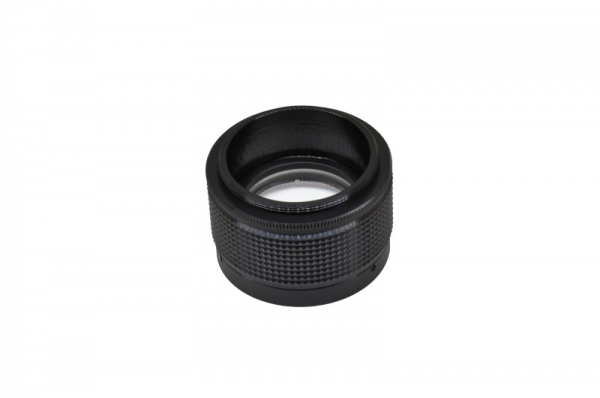

Specwell close-up lens for 7x25, 8x30, 10x30 monoculars
Specwell close-up lens for 7x25, 8x30, 10x30 monoculars
Thanks to a close-up lens (also known as “macro lens”) and a stand, the 7x25, 10x30 and 8x30 monoculars can be turned into a microscope:
- Monoculars are used as positioning aids in the industry, among other uses. However, if the working distances without close-up lens are too big or if the magnification is not as high as necessary, then the close-up lens can be screwed on the monocular without the acrylic stand. The microscope’s fields of vision, magnifications and working distances will thus be achieved.
- These monoculars are not only used in technology fields in combination with a close-up lens. Because of their extremely high light intensity, true-sided image and magnifications, these monoculars can also be used as visual aids.
|
Close-up lens with long stand and
7x25
monocular |
Close-up lens with long stand and
8x30
monocular |
Close-up lens with long stand and
10x30
monocular |
Close-up lens with short stand and
7x25
monocular |
Close-up lens with short stand and
8x30
monocular |
Close-up lens with short stand and
10x30
monocular |
Magnification |
21x |
25x |
30x |
30x |
40x |
45x |
Visual field |
13mm |
12mm |
12mm |
9.5mm |
8mm |
6.3mm |
