Benefits
- Ideal for watching television
- For reading printed texts (newspapers, bank statements, TV guides, telephone directories etc.)
- Lightweight therefore comfortable to wear and to use
Technical details
- Excellent optical image quality
- Weight: 16 g, with reading cap of 22 g.
- Achromatic lenses made out of high quality silicate, with MgF2 coating.

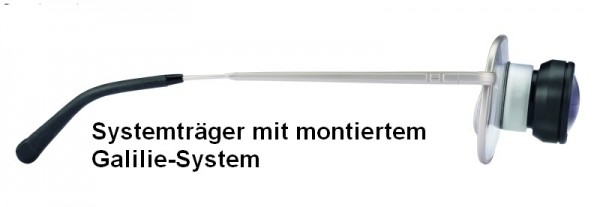

- The Galilei 2,2 x (Art. no. 96017) is used mounted on a system carrier.
- The Galilei system is set at infinity, reading caps are used for reading (see table).

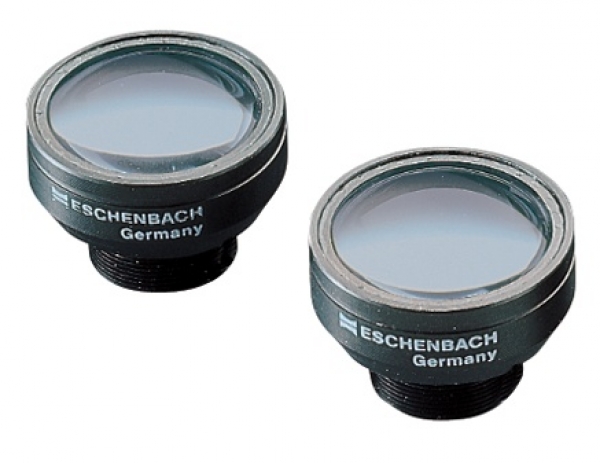

- The Galilei system 2,2x can be extended with the following reading caps (see photos), which have to be ordered separately:
| Art. no. |
Manufacturer no.
Eschenbach |
Magnification |
Visual field |
Working distance
(mm up to ∞) |
| 96017 |
1621 |
2.2x |
250 m / 1.000 m* |
∞ |
| Reading caps |
| 96031 |
16213 |
1.65x |
67mm* |
330mm |
| 96032 |
16214 |
2.2x |
54mm* |
250mm |
| 96033 |
16215 |
2.75x |
44mm* |
200mm |
| 96034 |
16216 |
3.3x |
35mm* |
167mm |
| 96035 |
16218 |
4.4x |
25mm* |
125mm |
| 96019 |
162110 |
5.5x |
22mm* |
100mm |
| 96007 |
162112 |
6.6x |
18mm* |
83mm |
| 96023 |
162116 |
8.8x |
14mm* |
63mm |
*The visual field figures are average numbers. They can vary depending on the distance between the eye and the eyepiece.
Made in Germany!
Image source : Eschenbach Optik GmbH
