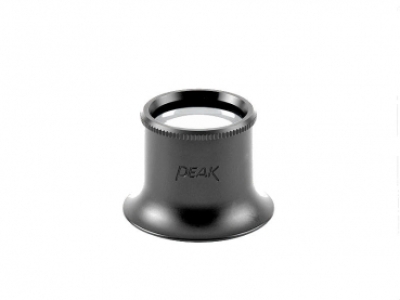

Many, particularly cheep watchmaker's loupes are available. However when using a watchmaker's loupe you should ensure that it has high quality optical lenses. Otherwise your eyes will fatigue very quickly and headaches can result from continuous use. Our PEAK watchmaker's loupes with 13 dioptres up to true 80 dioptres, use such superior lenses A bi-convex lens is used for these models with 13 to 26 dioptres. All housings have a hole to prevent the lenses from fogging up on the inside. All have an aluminium housing with matt black enamel finish.

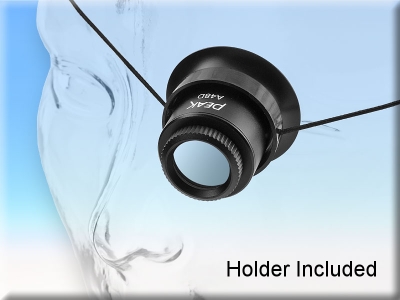

As of June 2010 all of our PEAK watchmaker's loupes have been produced with an additional holder and adjustable headband. This highly facilitates use, because it is no longer necessary to "pinch" the watchmaker's loupe under your eye brow. This simple and ingenious improvement allows relaxed work. When the watchmaker's loupe is no longer required, it can simply be moved to the forehead without setting it down.. This saves time and prevents damage or soiling the lens at the workplace. The watchmaker's loupe can be removed from the clamping ring and held in your hand.
Magniciation: 3.3x, 4x, 5x, 6.7x. Lens diameter Ø 23 mm.
Peak No. Magnification/Diopt. Lens
2048-A13D 3.3x / 13 D Bi-convex
2048-A16D 4x / 16 D Bi-convex
2048-A20D 5x / 20 D Bi-convex
2048-A26D 6.7x / 26D Bi-convex
Magnification 3.3 x
Focusable with working distance
Focal length 76.6 mm
Optical characteristics Bi-convex
Lens diameter 23 mm
Overall height 26 mm
Eye cup diameter 37 mm
Weight 10 grams
Headband with holder included
Case included
Magnification 4 x
Focusable with working distance
Focal length 63.9 mm
Optical characteristics Bi-convex
Lens diameter 23 mm
Overall height 26 mm
Eye cup diameter 37 mm
Weight 10 grams
Headband with holder included
Case included
Magnification 5 x
Focusable with working distance
Focal length 52.4 mm
Optical characteristics Bi-convex
Lens diameter 23 mm
Overall height 26 mm
Eye cup diameter 37 mm
Weight 10 grams
Headband with holder included
Case included
Magnification 6.7 x
Focusable with working distance
Focal length 39.8 mm
Optical characteristics Bi-convex
Lens diameter 23 mm
Overall height 26 mm
Eye cup diameter 37 mm
Weight 11 grams
Headband with holder included
Case included
