Watchmaker loupe - Wood housing - 4x Ø22mm
Watchmaker loupe in wood housing: because of the wood grain, each piece is unique!
- Magnification: 4x
- Lens type: biconvexe
- Diameter lens: Ø22mm
- Diameter eyecup: Ø39mm
- Weight: 11g
- Wood housing: Wood is a natural product; all housings will be different because of the wood grain; usually, the housing can even feature different colors of wood.

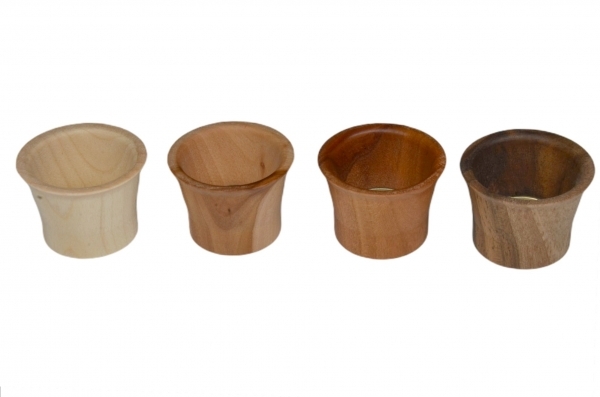

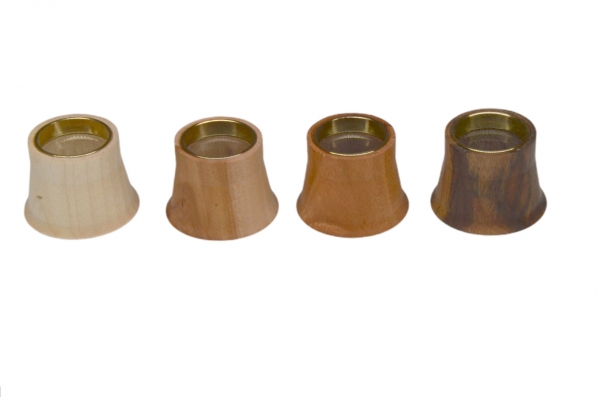

| Art. No. | Housing | Photos with partial views of the magnifier |

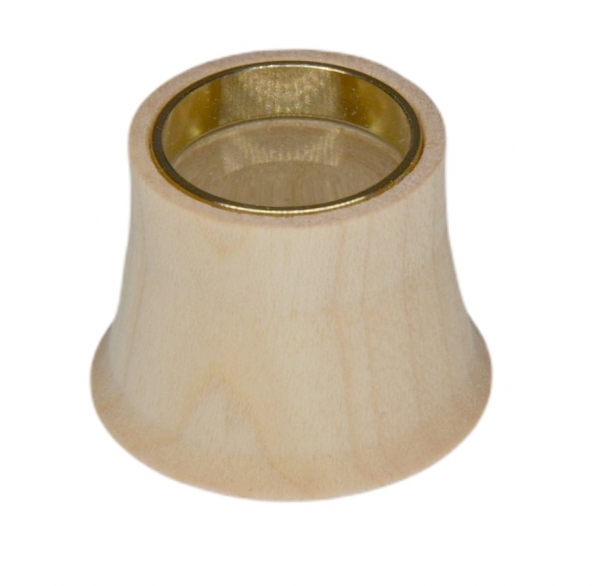

| 3604482 | Maple wood | 1. |

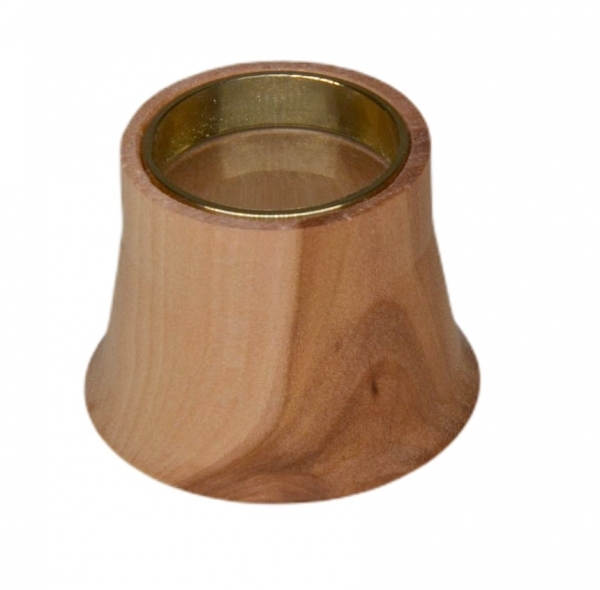

| 3604480 | Apple wood | 2., 7. |

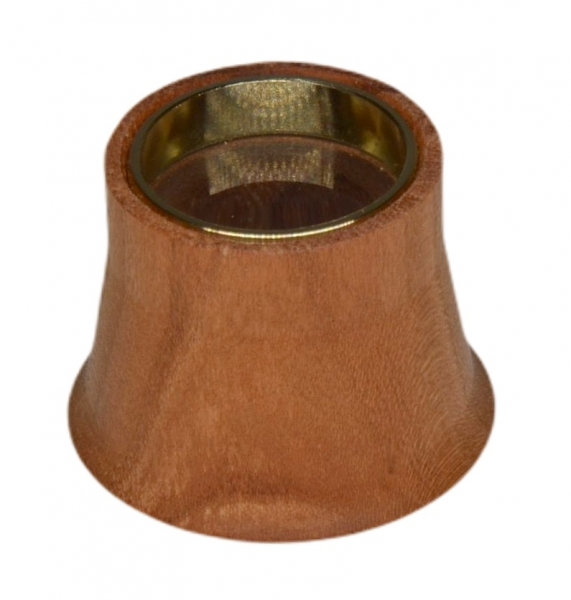

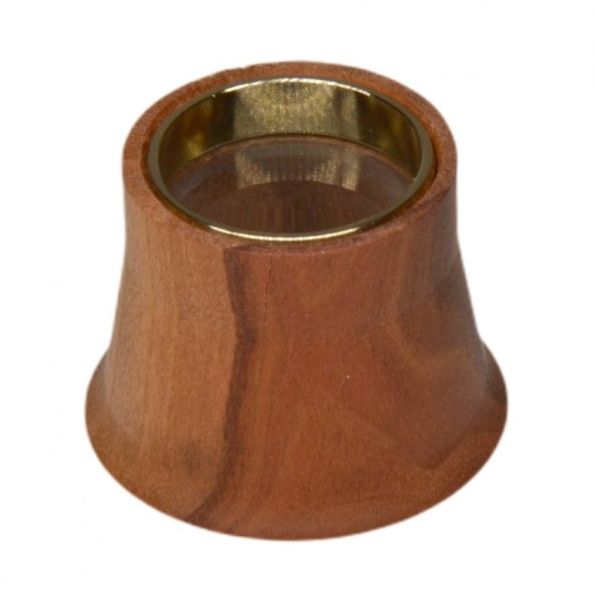

| 3604482 | Plum wood | 3., 8. |

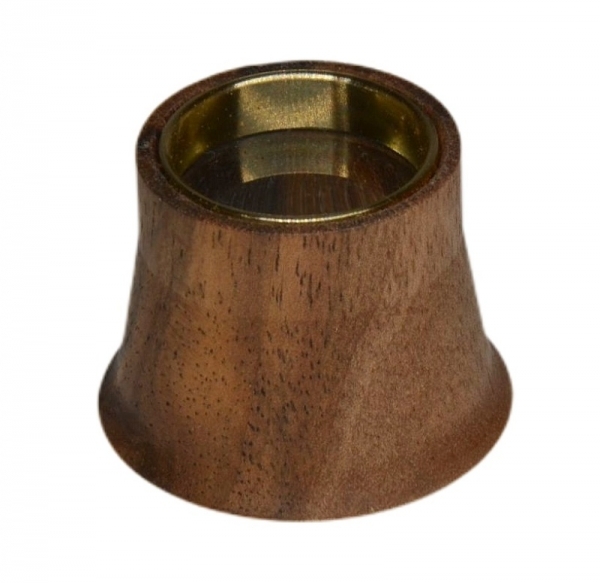

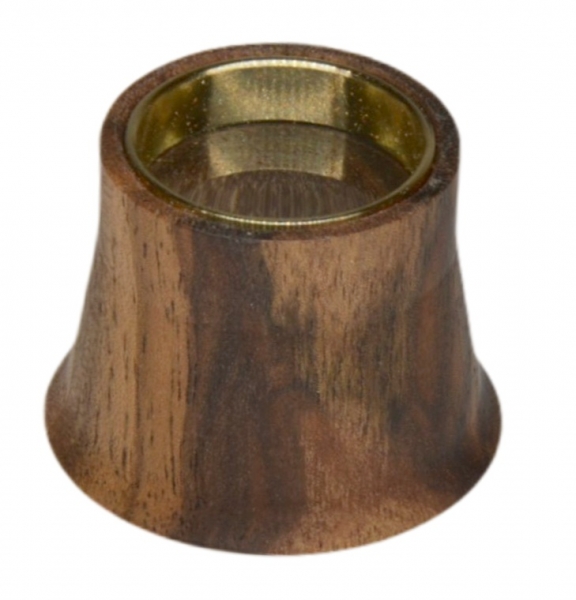

| 3604483 | Hazelnut wood | 4., 9. |
- Magnification: 4x
- Lens type: biconvexe
- Diameter lens: Ø22mm
- Diameter eyecup: Ø39mm
- Weight: 11g
Biconvex lenses are also called convexo-convex lenses and are mainly made out of a special quality glass. Different types of biconvex-lenses exist such as the planconvex-lens. The most common biconvex lens is the symmetric-convex lens as used in this magnifier.
The biconvex lens is manufactured with identical convex surfaces each side of the lens. The focal length is equal to the radius of the curvature. Resulting from its perfect symmetry it produce images close to 1 and up to a magnification of 8x. Biconvex lenses have positive focal lengths and form both real and virtual images.
Aberrations such as coma, distortion, and chromatic aberration almost exactly cancel out also due to the symmetry.
