- Lens diameter: 127mm
- Glass lens
- Magnification can be selected between:
1.75x (3 diopters)
2.25x (5 diopters)
2.75x (8 diopters)
- Pick a smaller magnification because for technical reasons, the bigger the magnification, the bigger the distortions will be

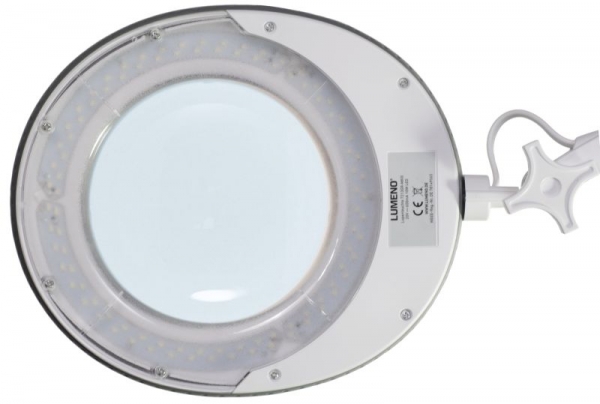

- Even illumination of the work field thank to 96 ultrabright SMD LEDs (SMD: „Surface mounted Device“)
- Luminous flux: 910 lumen
- Colour temperature: 6500 K
- Colour rendering index CRI: >85
- The housings of the lenses and the lamp are made out of plastic. The soft plastic ring serves as impact protection all the while making the lamp handy and elegant.
- The protective flap attached to the lens frame is collapsible and removable.
- Compact lens housing with integrated hinge and large working radius
- Covered and easy-to-move arm system with no risk of pinching. The arm is made out of metal
- 10 volt power supply, low voltage / adaptor
- Electricity usage: 10 watts, weighted 10kWh/1000h
- Standby electricity usage: 0.3 watts
Dimensions
- Length Lens-Lamp housing 230mm
- Width Lens-Lamp housing 200mm
- Height Lens-Lamp housing 30mm
- Upper arm length ca. 500mm
- Bottom arm length ca. 470mm
- Distance from bottom arm to lens center: ca. 1060mm
- Maximum table top thickness for table clamp: ca. 65mm
- Length connection cable: ca. 165cm
Weight: 2.3 kg (1.75x), 2.4 kg (2.25x) 2.6 kg (2.75x)
Lots of application fields such as cosmetics, precision mechanics, electronics or simply as a reading aid. Thanks to the three different magnifications, the application possibilities are incredibly diverse.
Delivery includes: magnifying lamp with adaptor, table clamp and instructions
Optional accessories can be ordered:
Glass lenses, heavy foot stand, floor stand, wall-mount, universal holder
(Manufacturer No: 7213GR-MKIII, 7215GR-MKIII, 7218GR-MKIII)
