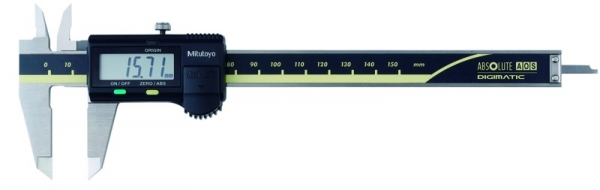

Mitutoyo Digital ABS AOS Caliper 0-150mm

Product No.:: 47451
On Stock:: Available! (approx. 2-3 days)
Stock:: pieces

Model:

£ 142.32

excl. Shipping costs

Description

This Digimatic caliper allows for reliable measurements and offers you the following advantages:

AOS (Advanced Onsite Sensor) electromagnetic inductive sensor, also to be found in the IP67 calipers
Thanks to the electromagnetic inductive ABS used, if the scale gets dirty (dust, oil, water, etc.), this will not affect the measurement
High quality guiding surfaces for a smooth, comfortable and stable slider movement
Character height: 9mm (150 and 200mm), 11mm (300mm)
The ABS (ABSOLUTE) Maßstab does not need any other zero position adjustment after the switch-on and has an unlimited process speed

Technical details

Art. No.	47451 (1st photo)	47452 (2nd photo)
Mitutoyo Prod. No.	500-181-30	500-184-30
Measurement range	0 - 150mm	0 - 150mm
Depth rod	Flat	Ø1.9mm
Data output	No	No
Weight	168g	168g
Resolution	No	No
Max. reaction speed	Unlimited	Unlimited
Battery life	Ca. 5 years under normal use	Ca. 5 years under normal use
ORIGIN (ABS point zero)	Yes	Yes
ON/OFF	Yes	Yes
ZERO/ABS	Yes	Yes
Alarm low voltage	Yes	Yes

Digimatic Calipers

DIGIMATIC CALIPERS

Mitutoyo Digimatic calipers feature advanced design styling for easier, faster measurements that are highly accurate and repeatable. Made of hardened stainless steel, our calipers slide smoothly with no need to wipe the scale clean. The digital display is larger and easier to read and displays the actual slider position, ready for measurement without having to zero the caliper. Many different types of Digimatic calipers are available including depth gages, offset calipers and scribing calipers as well as calipers measuring inner and outer dimensions.
