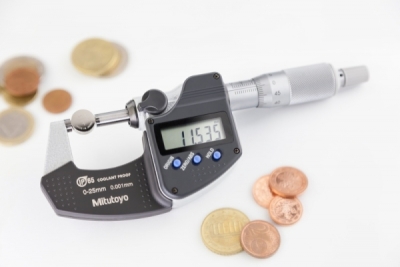

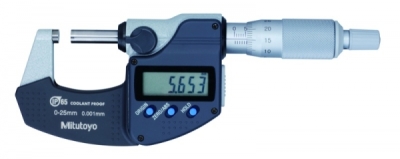

Mitutoyo Digital micrometer IP65 0-25mm, Digimatic
This IP65 micrometer with data output is of great accuracy, is particularly robust and offers you the following benefits:
Technical details
(Mitutoyo Prod. No.: 293-230-30)
- Oil resistant material for the plastic parts
- Extraordinarily long battery life of 2,4 years
- Great water and dust resistance
Technical details
| Measurement range | 0 - 25mm |
| Parallelism | 1 µm |
| Resolution | 0.001mm |
| Maximum permissible error J MPE | ±1 µm |
| Measuring force | 5 - 10 N |
| Weight | 270g |
| Date output | Yes |
| Display | LCD, character height 7.5mm |
| Measuring face | Carbide-tipped, micro-lap finish |
| Measuring spindle | Spindle lock, Ø6.35mm, Spindle pitch 0.5mm |
| Scale | Thimble and sleeve, satin chrome finish Ø18mm |
| Power supply | 1x SR-44 battery |
| Battery life | Ca. 2.4 years for models ≤100mm, 1.2 years for >100mm |
| 2 x PRESET (over 100 mm) | Yes |
| Digital/Analog | Digital |
| Inch/Metric | Metric |
| Measuring spindle |
Spindle lock, Ø6.35 mm, Spindle pitch 0.5mm |
| Battery life | Ca. 2.4 years |
| Delivery | Includes box, key, battery, setting standard (from 25mm), up to 50mm range, certificate of inspection |
(Mitutoyo Prod. No.: 293-230-30)
