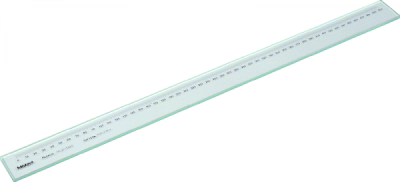

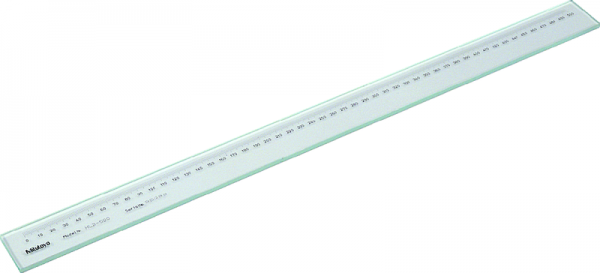

Mitutoyo Working Glass Scale + Inspection Cert., 1mm

Mitutoyo Working Glass Scale + Inspection Cert., 1mm

Name: Mitutoyo Working Glass Scale + Inspection Cert., 1mm
Price: 1275.57 GBP
Availability: InStock

Measuring length:

£ 1,275.57

Description

These high precision glass scales offer you the following benefits:

They are manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
They are ideal for checking the magnification accuracy of profile projectors and microscopes, as well as the table feed accuracy of measuring equipment.

Technical Data

Art.Nr.:	41456	414510	414511	414512
Mitutoyo Prod. No.	182-531-10	182-532-10	182-533-10	182-534-10
Range:	0 - 250 mm	0 - 500 mm	0 - 750 mm	0 - 1000 mm
Graduation:	1 mm	1 mm	1 mm	1 mm
Thickness of graduation line :	100 µm	100 µm	100 µm	100 µm
Delivered:	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection
Mass:	0.55 kg	0.86 kg	1.22 kg	1.54 kg
Accuracy:	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)
Material:	Sodium glass	Sodium glass	Sodium glass	Sodium glass
Thermal expansion coefficient:	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K
Inch-Metric:	Metric	Metric	Metric	Metric
