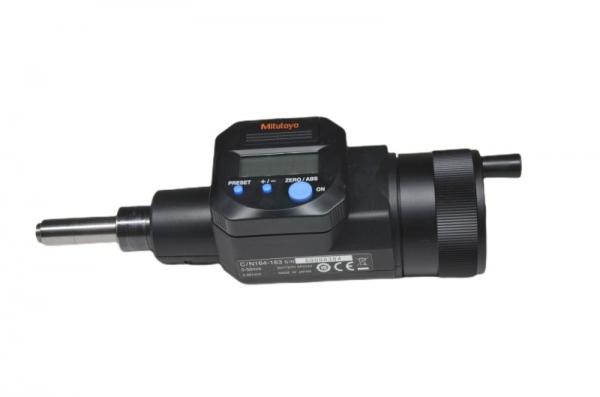

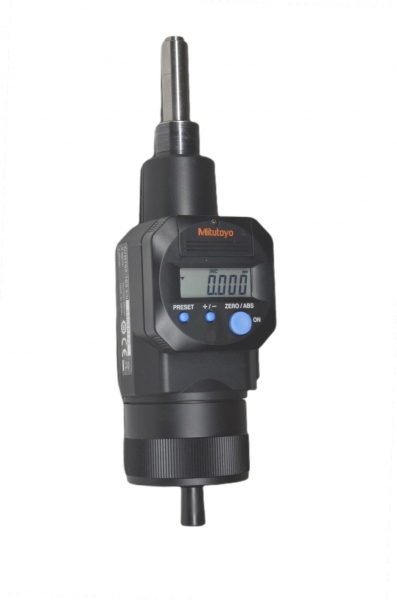

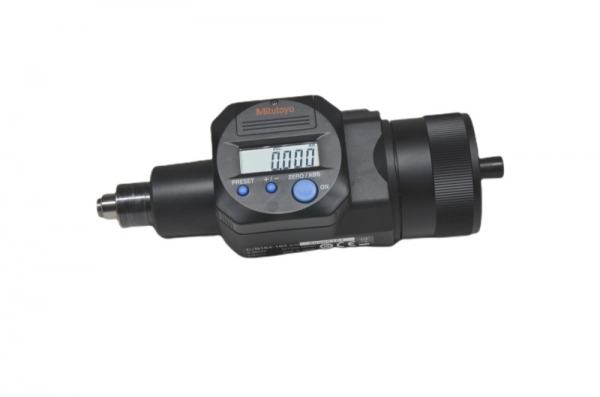

Mitutoyo Digital Micrometer Head
This is a digital micrometer head with non-rotating spindle. It offers you the following benefits:

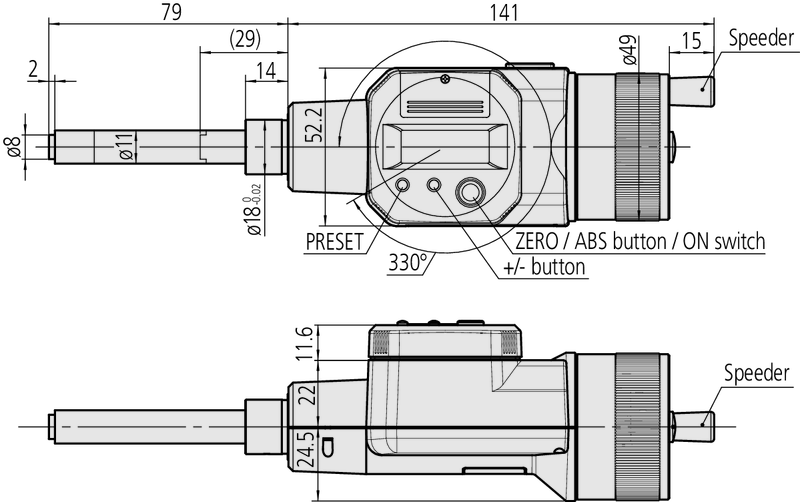

Dimensions
Mitutoyo Prod. No.: 164-163
- Rotatable display, carbide tipped and non-rotating spindle

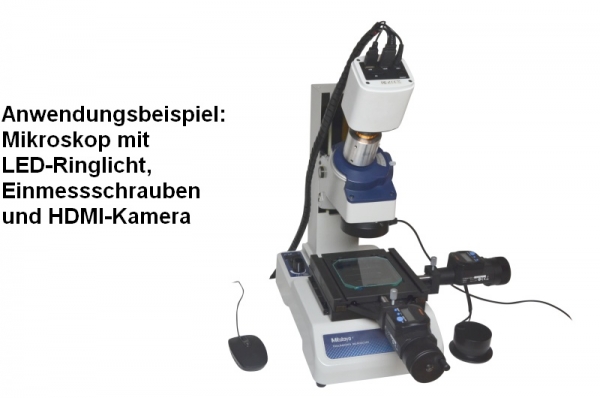

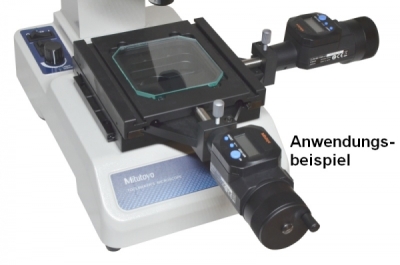

- It is perfect for integration into machinery and measuring instruments.
Dimensions
Mitutoyo Prod. No.: 164-163
- The display can be rotated up to 330 degrees for easy reading in any position.
- The non-rotating spindle imparts no torque on the workpiece.
Zero-setting, Data hold, Data output, Preset, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
| Range: | 0 - 50 mm |
| Digital step: | 0.001 mm |
| Maximum Permissible Error J MPE: | ±3 µm |
| Spindle end: | Flat |
| Spindle pitch: | 0.5 mm |
| Stem Ø: | 18 mm |
| Stem: | Flat |
| Remarks: | Non-rotating spindle |
| Mass: | 490 g |
| Display: | LCD, character Height 7.5 mm |
| Measuring face: | Carbide tipped |
| Power supply: | 2 batteries SR-44 |
| Battery life: | Approx. 1.8 years |
| 2 x PRESET: | Yes |
| Counting direction switchable: | Yes |
| Digital/Analog: | Digital |
| Inch-Metric: | Metric |
| Battery life: | Approx. 1.8 years |
| Delivered: | Including 2x Batteries SR-44 |
