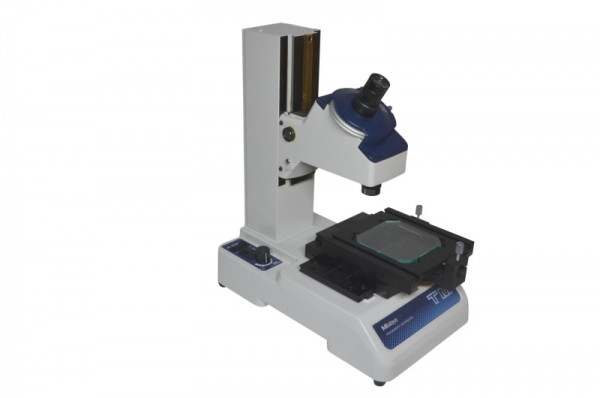

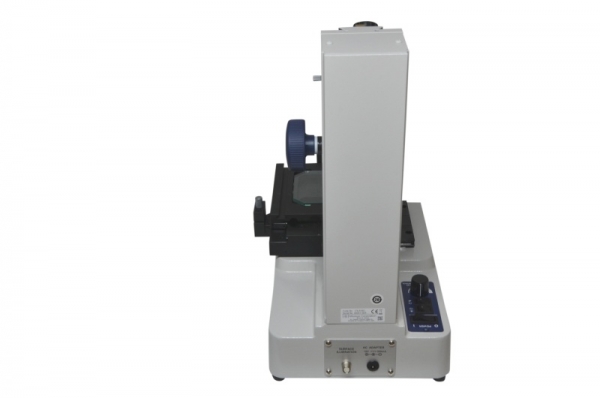

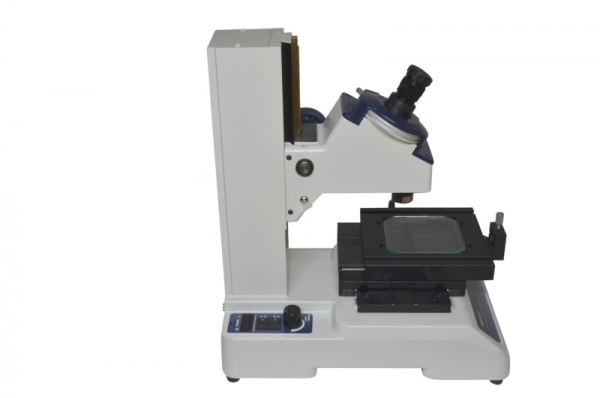

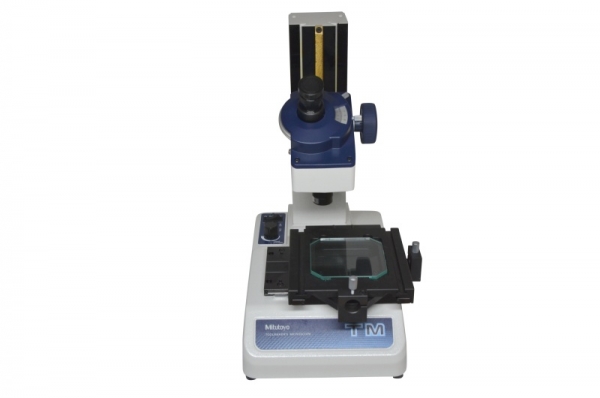

Mitutoyo Measuring Microscope TM Generation B Series
With this Toolmaker‘s Microscope you can measure dimensions and angles on small workpieces thanks to the optional analogue or digital micrometer heads and the built-in circular scale.
Further benefits of the TM Generation B include:

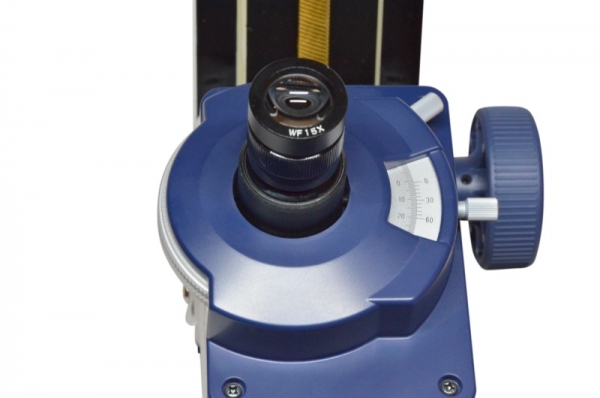

- Toolmakers microscopes well-suited for measuring dimensions and angles of features on small workpieces with the XY stage and rotating eyepiece scale.
- Compact design with recessed grips for better portability. The slim design makes this microscope ideal for use in areas with limited space.

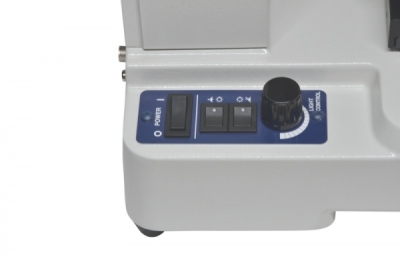

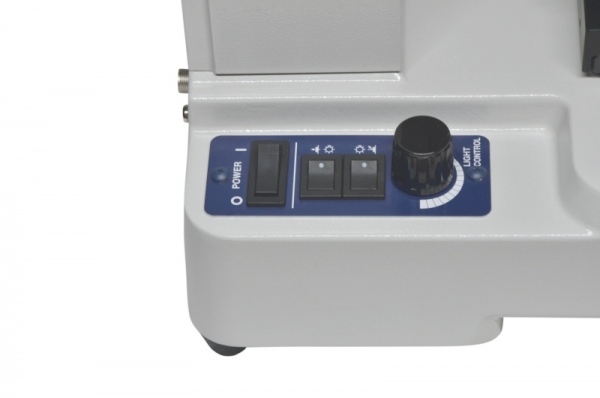

- Powerful adjustable LED light sources for contour and surface illumination provide optimum lighting conditions for workpiece inspection.
- The TM Generation B is available with work stages of 50 x 50 mm or 100 x 50 mm.
Mitutoyo Prod. No.: 176-819D
| Art Nr.: | 2991450 | 2991451 |
| Manufacturer No.: | 176-818D | 176-819D |

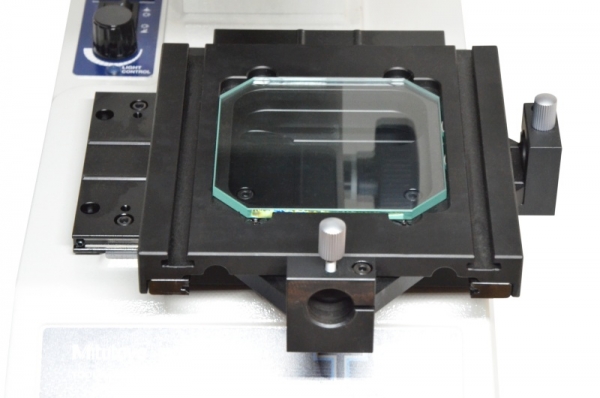

| XY stage table top size: | 152 x 152 mm | 240 x 152 mm |
| XY stage travel range: | 50 x 50 mm | 100 x 50 mm |
| Max. workpiece height: | 115 | 107 |
| Observation image: | Erect | Erect |
| Transmitted illumination: | Light source: White LED with green filter Functions: Light intensity adjustable |
Light source: White LED with green filter Functions: Light intensity adjustable |
| Surface illumination: | Light source: White LED Functions: Light intensity adjustable |
Light source: White LED Functions: Light intensity adjustable |

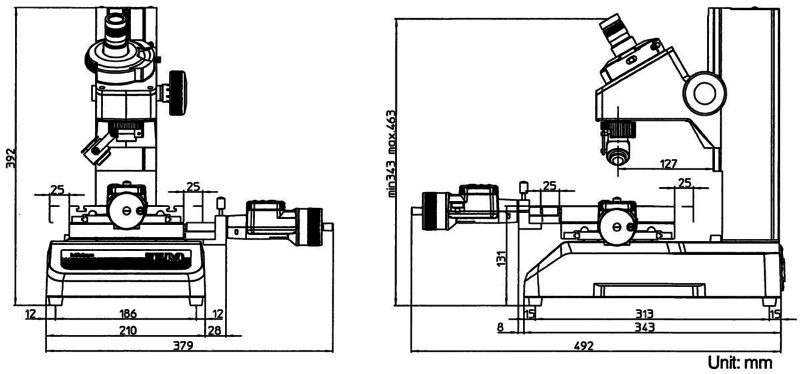

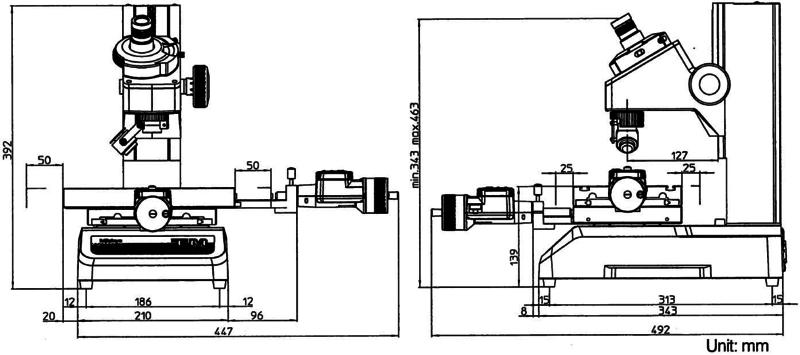

| Remarks: | TM-505B with optional micrometer screws | TM-1005B with optional micrometer screws |
