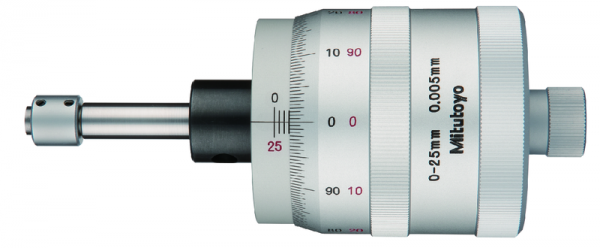

Mitutoyo Micrometer Head XY-Stage, Thimble 49mm 0-25mm, X-Axis
These XY Stage type micrometer heads let you read measurement values easily.
They offer the following benefits:
They offer the following benefits:
- Micrometer heads especially designed for accurate cross-travel stage translation in X and Y axes.
- Spindle end: Flat form and hardened, or spherical with carbide tip (more than HRA90), lapped surface.
| Range: | 0 - 25 mm |
| Maximum Permissible Error J MPE: | ±2 µm |
| Spindle end: | Flat with non-rotating device |
| Spindle pitch: | 1 mm |
| Stem: | Plain |
| Stem Ø: | 18 mm |
| Special features: | For X-axis Bidirectional grad. |
| Mass: | 270 g |
| Measuring face: | Hardened steel (>60HRC) |
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Graduation: | 0.005 mm |
