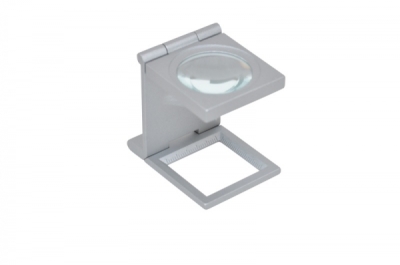

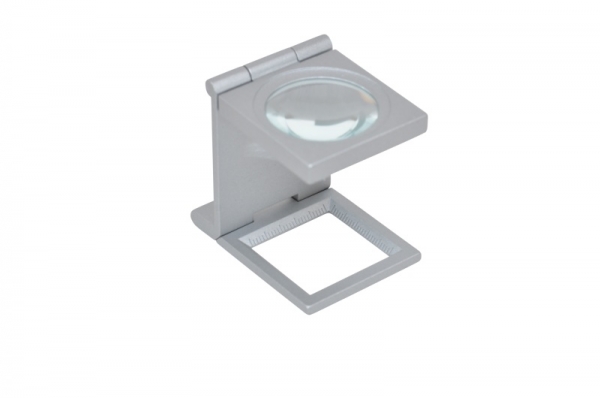

Peak #2003 SA0 - [6x, 7x, 9x] - Linen Tester+

Product No.:: 1406072
On Stock:: Available! (approx. 2-3 days)
Stock:: pieces

Magnification:

£ 21.29

excl. Shipping costs

Description

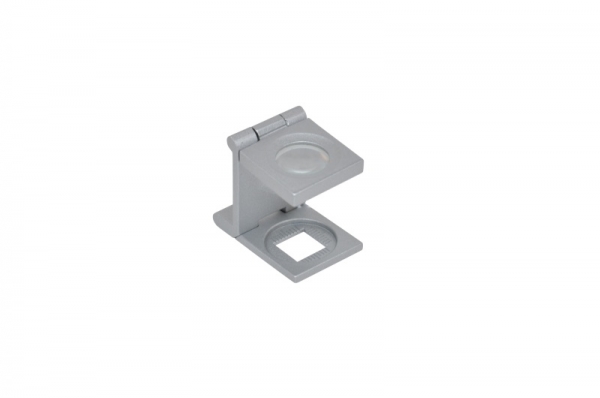

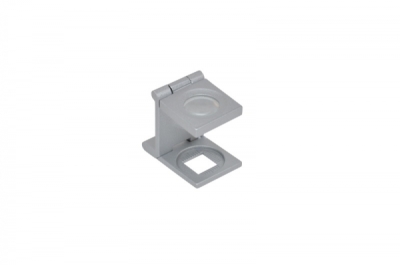

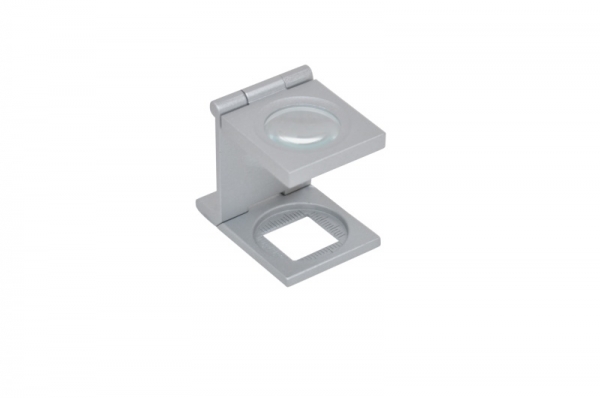

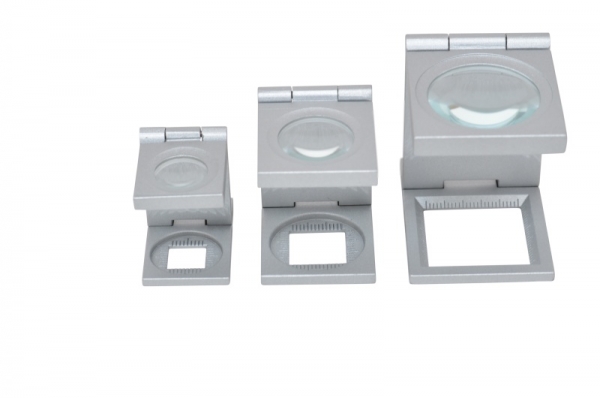

Peak SA0 Linen tester series with biconvexe glass lense and metal frame made of silver-coloured aluminium. Optimally produced hinges guarantee long service life. Magnification factor of 6x, 7x, 9x with a large visible area.

**Technical Specifications**
Product Number	1409070	1407071	1406072
PEAK ref. no.	SA0 -1209	SA0 -3407	SA0 -1006
Magnification	9x	7x	6x
Lens type	biconvexe	biconvexe	biconvexe
Lens material	glass	glass	glass
Lens diameter	Ø10mm	Ø15mm	Ø17mm
Scale metric	mm	mm	mm
Scale length (on all 4 sides)	10x10mm	15x15mm	25x25mm
Scale graduation	1mm	1mm	1mm
Foot opening	10x10mm	15x15mm	25x25mm
Weight	15g	26g	42g
Material	aluminium	aluminium	aluminium
Dimensions	35x23x35mm	44x30x41mm	53x38x51mm

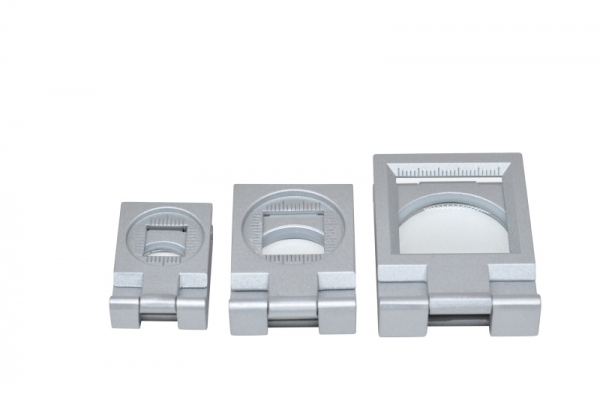

Dimensions folded, LxWxH (mm)	35x23x10mm	44x30x12mm	37x28x14mm
Packaging	individual	individual	individual

Technical Specifications

**Technical Specifications**
Product Number	1409070	1407071	1406072
PEAK ref. no.	SA0 -1209	SA0 -3407	SA0 -1006
Magnification	9x	7x	6x
Lens type	biconvexe	biconvexe	biconvexe
Lens material	glass	glass	glass
Lens diameter	Ø10mm	Ø15mm	Ø17mm
Scale metric	mm	mm	mm
Scale length (on all 4 sides)	10x10mm	15x15mm	25x25mm
Scale graduation	1mm	1mm	1mm
Foot opening	10x10mm	15x15mm	25x25mm
Weight	15g	26g	42g
Material	aluminium	aluminium	aluminium
Dimensions	35x23x35mm	44x30x41mm	53x38x51mm
Dimensions folded, LxWxH (mm)	35x23x10mm	44x30x12mm	37x28x14mm
Packaging	individual	individual	individual

Biconvexe Lens

Biconvex lenses are also called convexo-convex lenses and are mainly made out of a special quality glass. Different types of biconvex-lenses exist such as the planconvex-lens. The most common biconvex lens is the symmetric-convex lens as used in this magnifier.

The biconvex lens is manufactured with identical convex surfaces each side of the lens. The focal length is equal to the radius of the curvature. Resulting from its perfect symmetry it produce images close to 1 and up to a magnification of 8x. Biconvex lenses have positive focal lengths and form both real and virtual images.

Aberrations such as coma, distortion, and chromatic aberration almost exactly cancel out also due to the symmetry.
