The connection is made through a 1" C-Mount thread.
The adapter is compatible with focusers with 23,2 mm sockets.
Image source: Bresser GmbH
Art. no.
9601000
9601002
9601001
Manufacturer No.
5914005
5914007
5914001
Fields of application

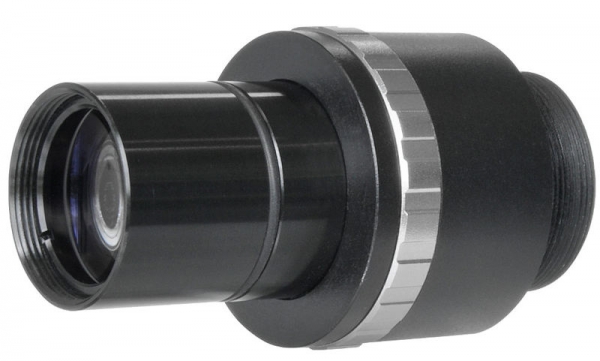

The BRESSER 0.5x variable reduction lens is used to magnify or to reduce the image sections of a microscope camera. The light intensity is increased, and therefore the illumination time is reduced.
The BRESSER 0.75x variable reduction lens is used to magnify or to reduce the image sections of a microscope camera. The light intensity is increased, and therefore the illumination time is reduced.
The BRESSER 1x variable reduction lens is used to shift the focus point of the camera. The image section can therefore also be slightly changed.
Sensor size
Especially for cameras equipped with 1/2" or 1/3" sensor sizes.
Especially for cameras equipped with 2/3" sensor sizes.
Especially for cameras equipped with 1" sensor sizes.
Miscellaneous

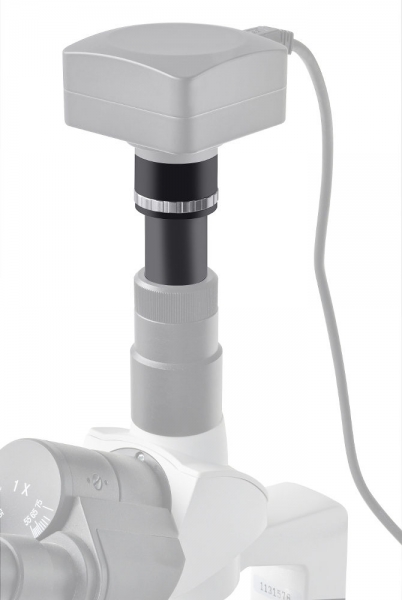

If you use a trinocular microscope, with an adapter you can adjust the focus to the ocular focus.
If you use a trinocular microscope, with an adapter you can adjust the focus to the ocular focus.
If you use a trinocular microscope, with an adapter you can adjust the focus to the ocular focus.
This adapter is particularly recommended for the MikroCamII 20 MP (Manufacturer No. 5914200).
