The

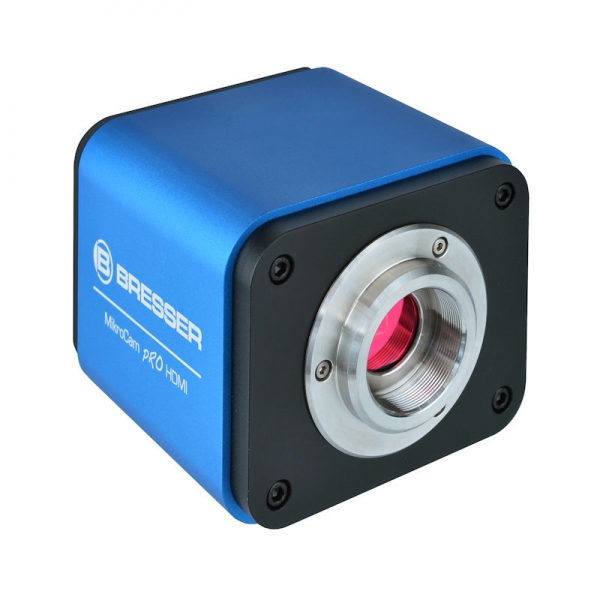

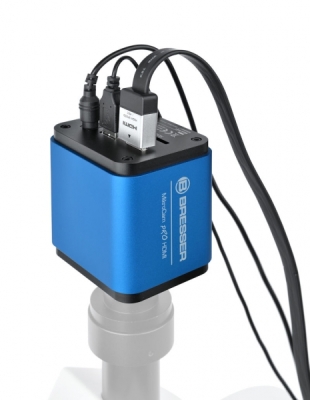

BRESSER MikroCam Pro HDMI delivers
excellent image quality with
ease of use. The microscopic image is transferred in
Full HD resolution and without delay to a HDMI monitor or TV screen.
No computer is necessary to use the camera. Pictures and video can be stored on a SD card.
The camera can be controlled with the included USB mouse directly through the on screen display. Despite this, connection to a PC is still possible.
- Sony IMX 236 sensor for excellent image quality, 1/2.8" sensor
- Resolution: 1920 x 1080 pixels (Full HD), pixel size 2,8µm
- Direct output on a HDMI monitor or TV screen - no PC necessary
- professional software for PC installation included for even more functionality
FEATURES
- HDMI-connection on a monitor or TV
- brilliant full HD images
- no PC necessary
- saves images and video directly to SD card (not included) max. 32 GB
System requirements for use on a PC
- Personalcomputer with Windows 7 / 8 / 10 (32/64 Bit)
- 2,8 GHZ Quad Core Processor
- 4 GB RAM
- 2 GB free harddisk space
- CD or DVD drive
- USB 2.0-connection
Software included in the following language
- English
- German
- French
- Polish
- Russian
- Turkish
- Indonesian
- Japanese
- Chinese (simplified)
- Chinesisch (traditional)
The software includes
numerous functions for image acquisition and image processing
- image and video capture, time lapse

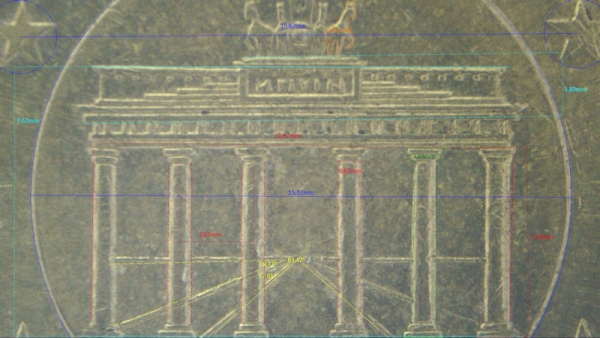

- measurement function* (with live image): distance, angle, surface area (polygon, circle, ellipsoid)
- automatic dark frame processing for reduced noise
- nhanced depth of field function when taking several images with different focus
- Image Stacking from video files
- fluorescence microscopy: fluorophor data for common dyes can be found in the software
- Batch save
-
HDR (High Dynamic Range)
*for the use of the included measurement functionality a object micrometer slide is necessary, e.g. BRESSER item no. 5916700 1/10mm or 5916710 1/100mm.

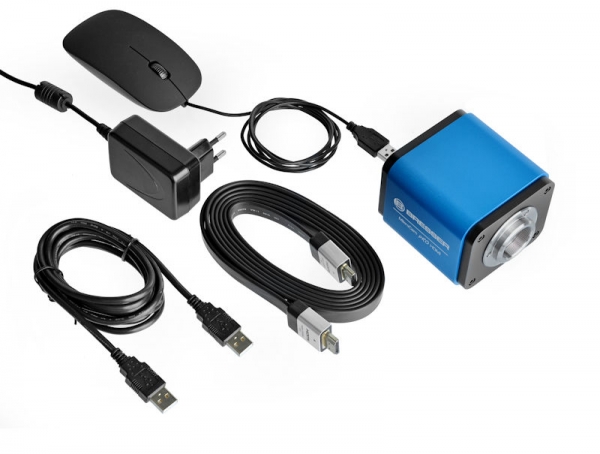

SCOPE OF DELIVERY
- MikroCam Pro HDMI with C-Mount
- AC adapter
- Mouse
- HDMI cable
- USB cable USB-A / USB-A
- Software (CD-ROM)
