Capture
4K video with the
BRESSER MikroCamII 9MP 4K microscope camera. The video can be up to
30 fps depending on the PC used. The camera uses a
global shutter, which captures moving objects without distortion. The big image sensor (14.13 x 7.45mm) captures a big field of view. The high
light sensitivity of the
Sony® IMX305 CMOS-sensor produces excellent images even when using darkfield or phase contrast.
The BRESSER MikroCamLabII software includes a variety of useful functions, e.g.
measuring in live mode (optional calibration slide needed),
mosaic/stitching, focus stacking (for extended depth of field). All camera parameters (exposure time, gain, white balance) can be set manually.
Mosaic and focus stacking can be done in live mode, which gives
instant results even for unexperienced users. The method is also much faster than the normal procedure where a set of images is rendered afterwards. To use the mosaic function in live mode, a crosstable / mechanical desk is highly recommended to move the sample.
The big camera sensor is not compatible with all microscope models. It might lead to vignetting (dark edges). To compensate this, a 1.0x optical adapter (item code 5914001) is recommended.
This camera will not work with the ETD-201 stereo microscope as the microscope will illuminate only a part of the sensor. For this microscope, we recommend the model MikroCamII 12MP item code 5914912.

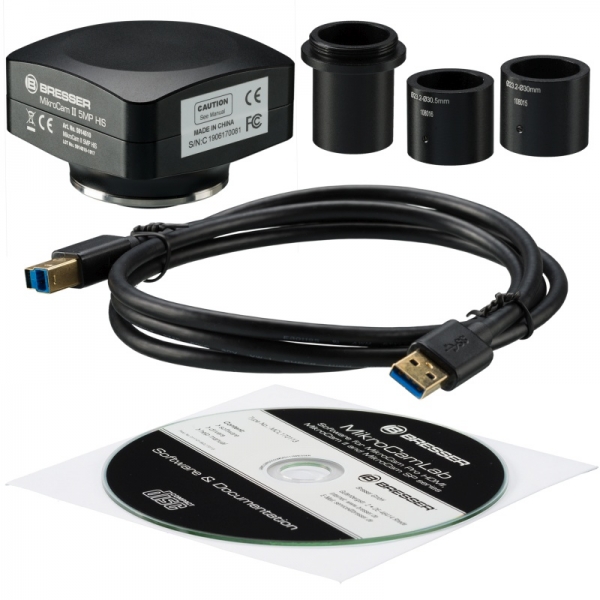

SCOPE OF DELIVERY
- Camera body
- USB 3.0 cable
- 3 adapters: 23.2mm 30.0 mm and 30.5 mm
- Software CD (Windows)
SYSTEM REQUIREMENTS
- Personal computer with Windows 8/10 (32/64 Bit)
- 2.8 GHZ Quad Core processor
- 4 GB memory
- 2 GB free disk space
- CD or DVD drive
- USB 3.0 port
