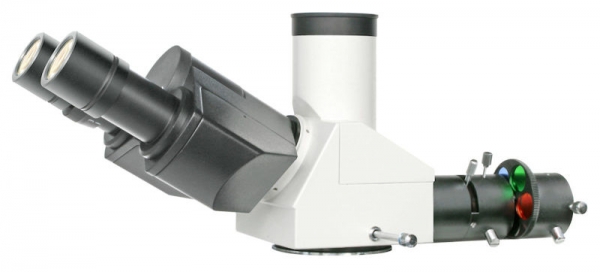

In the microscope's basis, there are a transmitted light halogen illuminator (20 W) as well as the power supply and the continuous adjustable dimmers for reflected light and transmitted light. The trinocular head attachment works with both illumination modes. It also allows photography and binocular visual observation. The inclination of the eyepiece tubes is 30°. With the polarization head attachment, the instrument is suitable for the internal structure of materials and for condition monitoring of different mechanical apparatus in college and factory.

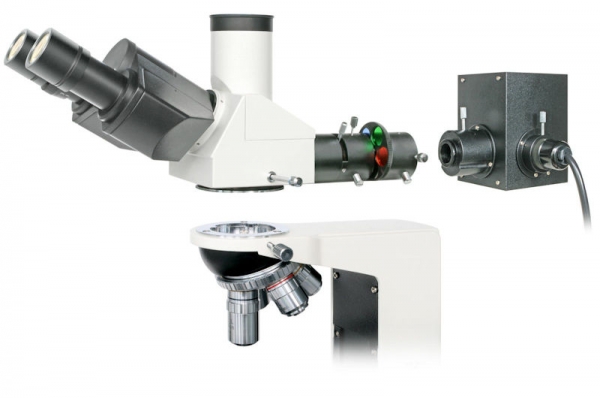

The reflected light halogen illumination (20W), which goes through the objective onto the object, can be modified for special purposes with a colour filter wheel and the polarizer/analyzer combination. The Science ADL 601P is an instrument with an excellent value for money. It has also the other features, which are typical for high-quality microscopes: fourfold objective nosepiece, lengthwise and cross moveable stage, coaxial focusing knobs (concerning fine drive: 200 µm / full turn), adjustment of eye relief, diopter adjustment and the phototube. Optional available, general accessories are the wide field eyepieces (WF10x, WF16x), the dividing eyepiece (WF10x), different planachromatic DIN objectives (e.g. 4x, 5x, 10x, 20x, 40x retractable, 60x retractable, 100x-oil retractable), the Abbe condenser (numerical aperture 1,25; with iris diaphragm and auxiliary lens), dark field condensers (dry and oil), immersion oil, the phase contrast set, a field diaphragm (in order to obtain Köhler illumination) and filters (blue, green, yellow, ground glass, polarization).
Features
• Type: Biological microscope
• View: Binocular
• Application range: Biology, Gemology, Mineralogy, Botany
• Illumination: Halogen
• Level: Intermediate, Expert
• Warranty: 2 years
• 1.25 Abbe-condenser with iris diaphragm and filter holder
• Incl. adjustable mechanical stage
• Integr. dimmer
• Adjustable eye relief
• Diopter adjustment
Specifications
• Comfortable binocular view, 30° inclined
• Transmitted 6V/20W, adjustable
• Magnifications: 40x-600x
• Eyepieces: 2x WF10x
• Eyepiece diameter: 23.2 mm
• Objectives: PL-5x, PLL-10x, PLL-40x, PLL-60x
• Power supply: 220/240V
Included Accessories
• 4 DIN-objectives
• 2x 10x eyepieces
• 1.25 Abbe-condenser with iris diaphragm and filter holder
• Polariser-/Analyser-Attachment
• Additional Halogen-Incident-Illumination for Polarisation
