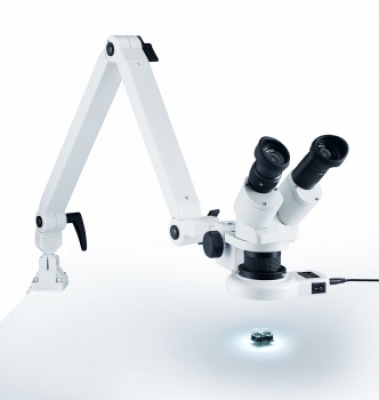

Massive design, versatile adjustments. With table clamp and permanently mounted table base. Can be used at large surface exhibits or at adjacent work places.
- With LED Epi-Ring Lamp
- 850mm flexible long arm
- table-clamp max 70mm
- Microscope Metal stand 245 mm
- Working distance 84 mm
Features
- Stereo head angled 45 °, 360 ° rotatable, adjustable interpupillary distance of 54 - 74 mm
- Magnification 10x, 20 x
- Widefield eyepieces 10x, Eyepiece tube with diopter adjustment on left diopters ± 5
- Lenses with Shift revolver, 1 x and 2 x, Lens Coaxial arrangement
- Focusing on both sides coarse feed
- Stable metal stand, Column length 245 mm, Flax Pedestal 200 x 150 mm with black and white plastic plate for epi-illumination
- LED epi-ring illumination with light, shadow reflected light, life 20000 h, white, flicker-free LED light with 5800 K color, brightness without color change continuously from 0 - 15000 Lx regulated.
- Microscopoe dimensions L x W x H) 600 x 400 x 300
Included in delivery
- Microscope head complete with focussing gear box
- Table stand
- LED Ring illumination
- Power adapter
- Dust protection cover
- 2 Eyepiece cups
- Hook wrench
- Operating instructions
