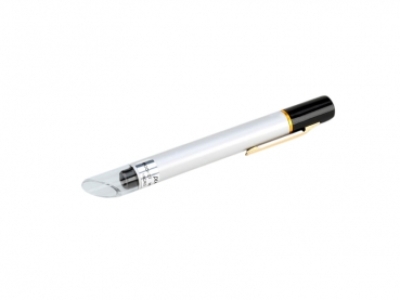

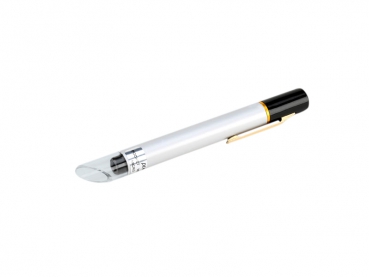

Special long version of the 2001 for inspection of difficult-to-reach points or when working on workbenches, eliminating the need for the user to bend too far forward. The long version of this pen microscope is also very light sensitive, eliminating the necessity of additional illumination.
The microscope can be focussed by setting it down on the screw-on acrylic tip. Pivoting around the set-down point focuses the measuring point. Representation in ocular is a mirror image. The diameter of only 12.4 millimetres allows inspection at points where other microscopes have no chance whatsoever. The high luminosity lenses require no further illumination. Synthetic leather case included.
Magnification factor 15 x
Focusable with adjustment angle
Field of view 5.4 mm
Measuring length
Scale
Optical characteristics Distortion-free
Dimensions 180 x 12.4 mm
Weight 18 grams
Case included
Display mirror image
