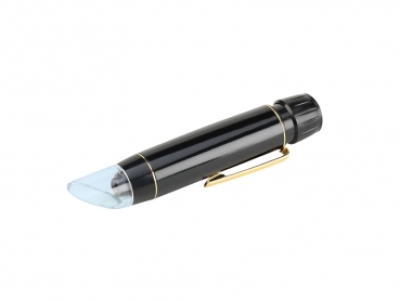

The 2050 series of pen microscopes is available with magnification factors of 25x, 50x, 75x and 100x. The primary difference in comparison to the 2036 series is that the image of the object to be measured is not reversed. A prismatic system inside the microscope reduces the overall length while simultaneously producing a true image. The built-in measuring scales offer graduations between 0.05 and 0.005 millimetres. The viewing area ranges from 3.5 5o 0.86 millimetres. This high quality pen microscope also offers a separate focusing mechanism for the measuring scale as a special feature. Advantage: The object as well as the scale can be focussed in the same manner as a stand microscope. Supplied with case.
PEAK Magnification Scale Division Field of View
2050-25 25x 3.50 mm 0.050 mm 3.00 mm
2050-50 50x 1.70 mm 0.020 mm 1.60 mm
2050-75 75x 1.10 mm 0.010 mm 1.00 mm
2050-100 100x 0.86 mm 0.005 mm 0.80 mm
All lenses from silicate glass and focussable
