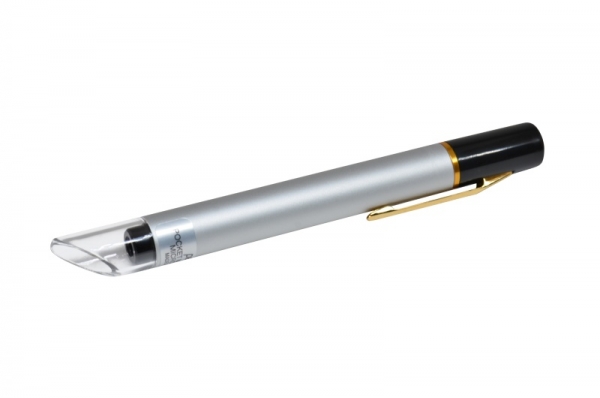

The Peak 2036 Pocket Microscopes are fitted with a measurement scale and available in two models with magnification factors of 25x or 50x. A graduation on the scale of either 0.05 or 0.02 mm is integrated into this pocket microscope which has incredibly high luminosity lenses that require no further illumination. The image is focused by setting it down on the screw-on acrylic tip and pivoting around the set-down point to find the angle which gives the sharpest image.
Representation in eyepiece is a mirror image. The diameter of only 12.4 millimetres allows inspection at points where other microscopes have no chance to fit.

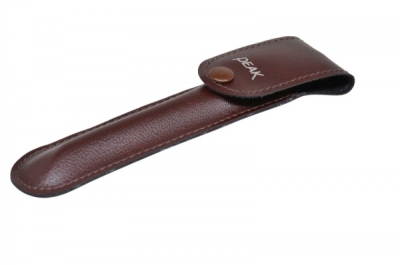

Dimensions 124 x 12.4 mm. Weight 12 grams. Synthetic leather case included.
| Art. Nr. |
2925070 |
2950154 |
| Peak Prod. No. |
PK2036-25 |
PK2036-50 |
| Magnification |
25x |
50x |
| Field of View |
3,3mm |
1,7mm |
| Measuring length |
3,0mm |
1,5mm |
| Scale |
0,05mm |
0,02mm |
