PEAK monocular 8x20, with close-up lens (microscope): 25x

PEAK monocular 8x20, with close-up lens (microscope): 25x

£ 230.49

Description

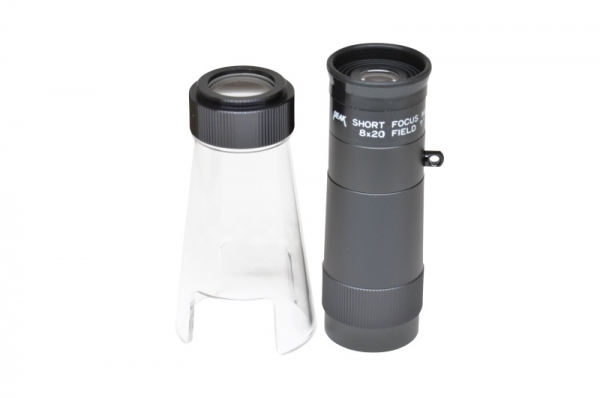

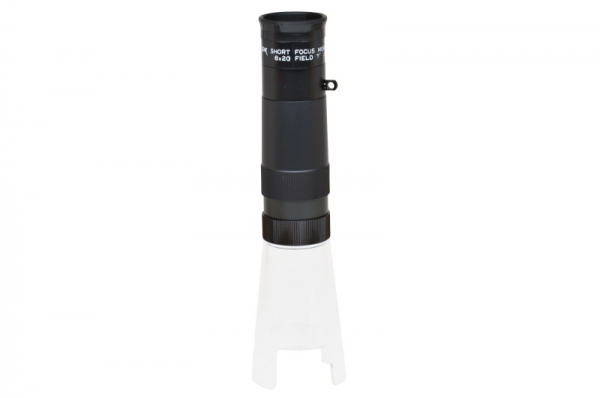

The monocular is delivered with a stand and the close-up lens already fitted. The close-up lens screws on the monocular, thus obtaining a great microscope.
Monoculars are especially used in industrial fields as a positioning aid. However, if the working distances are too big or if the magnification is not big enough, then the close-up lens can be screwed on the monocular without the acrylic stand. This way, you will be able to achieve the visual fields, magnifications and working distances of the microscope.
These monoculars are not only used with a close-up lens in technology field. Because of their extremely high light intensity, their true-sided image and their magnifications, monoculars can also be used as a visual aid.
The lens systems in the monocular (ocular and objective lens) are achromatic (image free from chromatic aberration).
The image is true-sided.
The monocular can be focused.
No scale

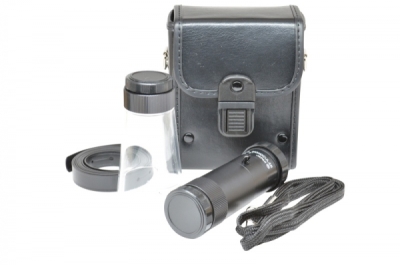

Delivery includes: monocular with lens screwed on acrylic stand, lanyard, high-quality box with shoulder strap

Magnification monocular without stand	8x
Magnification monocular with stand	25x
Visual field monocular at 1.000m distance	113m
Visual field monocular at 300mm distance	20mm
Visual field monocular with close-up lens	9mm
Dimensions monocular without stand	91x31mm
Dimensions monocular with stand	172x45mm
Weight monocular without stand	76g
Weight monocular with stand	110g
Objective aperture	20mm
Visual angle	6.5°
Relative brightness	6.2
Pupil diameter	2.5mm
