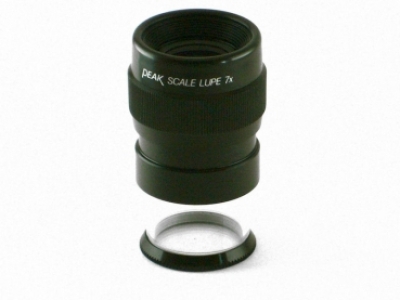

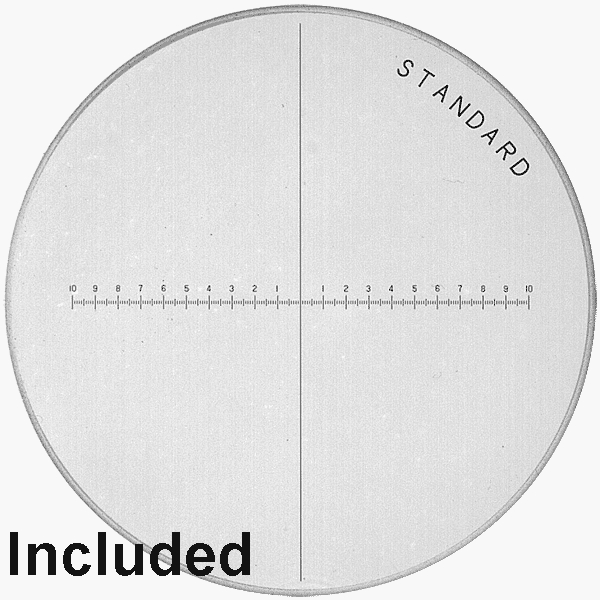

The PEAK 1975 Scale Loupe is a 7x measuring magnifier with a built-in graticule scale having graduations every 0.1 mm and a measuring length of 20 mm. Precise measurements are easily taken by placing the scale on the area to be measured. The graticule scale is made of glass and can easily be removed.
The PEAK 1975 has a superb quality achromatic optical system consisting of three glass lenses subdivided into two groups providing a clear view of the object without image distortion. The body of the 1975 measuring magnifier has a focusing ring for smooth adjustment to ensure a clear image. The magnifier lenses are coated to prevent reflection.
| Magnification factor |
7 x |
| Focusable |
Yes |
| Field of view |
24 mm |
| Measuring length |
20 mm |
| Scale |
0.1 mm |
| Optical characteristics |
Achromatic, distortion-free |
| Dimensions |
36 x 62 mm |
| Weight |
56 grams |
