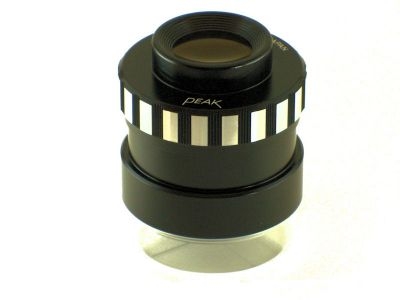

Peak 1990 Anastigmatic Loupe (film viewer)

This anastigmatic loupe is incomparable to any other produced. The high precision PEAK magnifier, either with 4x or 7x magnification, has been specifically made for the professional user to view the complete micro-film size (here, the 4x) 32 mm x 45 mm) or flat objects less than 58 mm in diametre.

The special glass lens produces a very high contrast image, which remains sharp and undistorted throughout the whole viewing field to the edges. The Achromatic lens is superior in providing a fully true color corrected image. All this, combined with the lenses anti-reflection coating, gives any micro-film-viewer the full advantage of a crystal clear image.

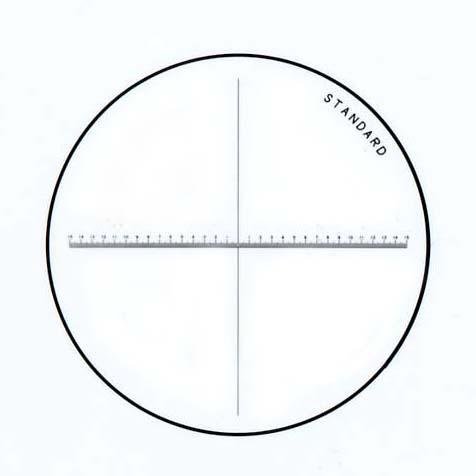

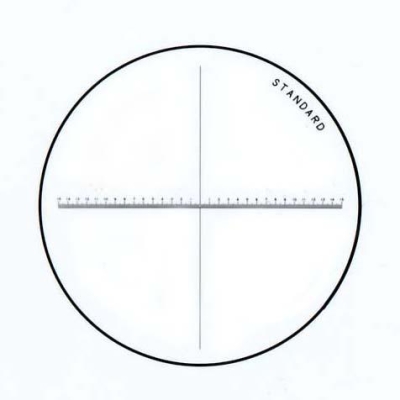

You can focus your image by using the very finely adjusted focusable ring. A cross hair metric scale reticule is included in both versions and can be easily installed or removed when needed. The metal housing has a transparent base which permits incident and transmitted light.

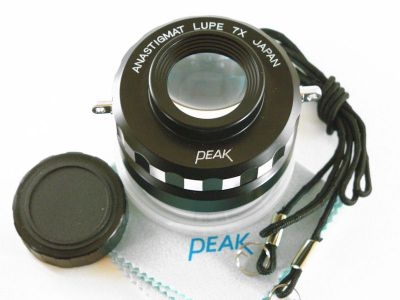

While the 4x magnification has been made to view the full film, the 7x magnification has been designed for the user who needs to inspect certain parts of the film in much finer detail.
