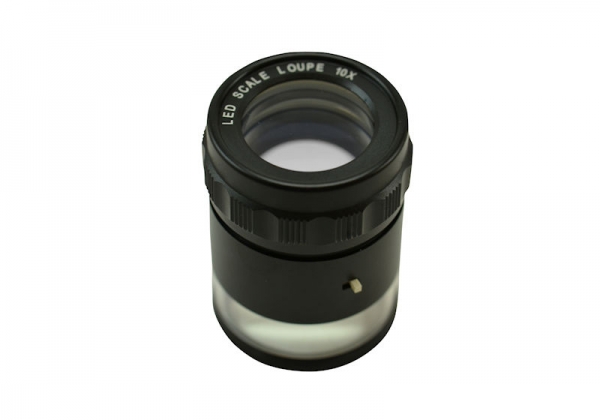

Measuring Magnifier with LED RING [10x]

Product No.:: 2810181
On Stock:: Available! (approx. 2-3 days)
Stock:: pieces

Add Calibration Certificate:

£ 59.00

excl. Shipping costs

Description

A fantastic investment in your measuring tool kit...

Magnification: 10x

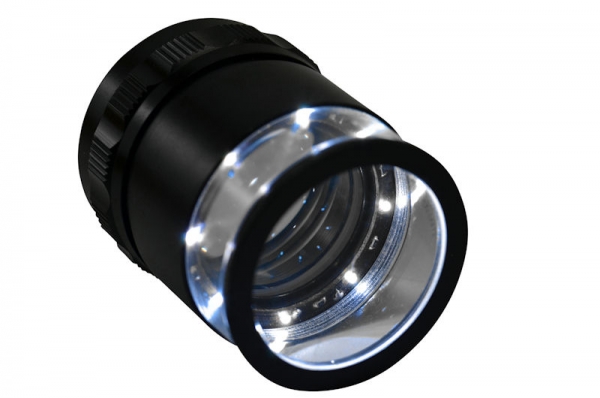

8 LEDs are built into the framed ring for fully and a contrast-rich illumination of the measuring area
LED on/off button
achromatic lens system
focusable (no steps)
natural light can fall into the measuring field
distortion free viewing
lens coated in anti-reflex
Dimensions: ø46 x 45mm
Weight (with protective cap): 116g

Delivery includes:

4 batteries (LR 396)

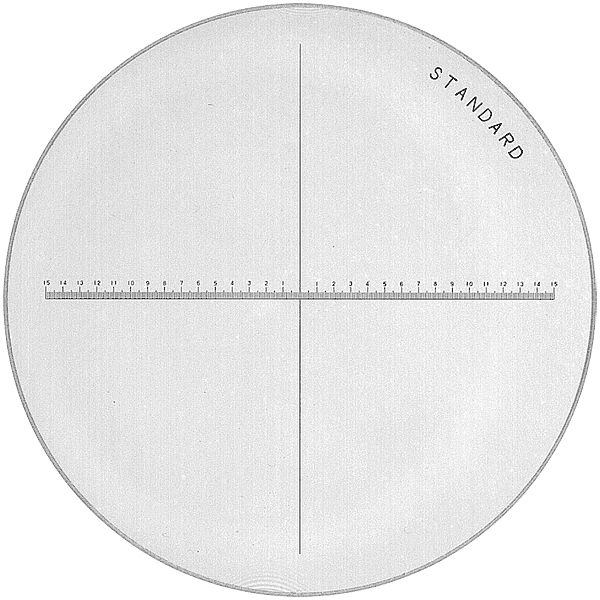

Standard reticule

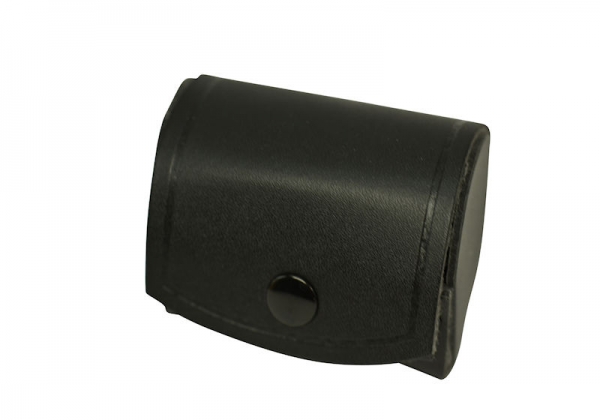

Synthetic pouch

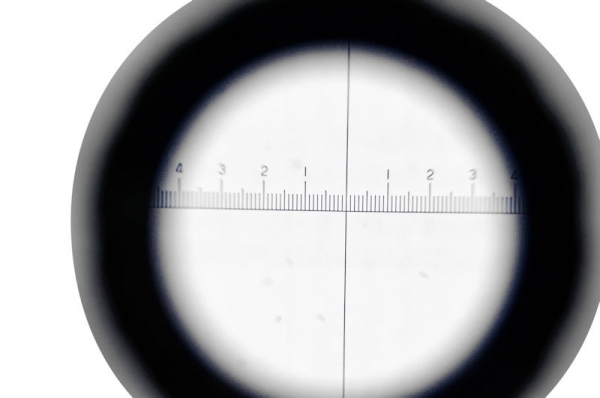

Reticule specifications:

Length 30mm
Division: 0,1mm
Field of view: ø34mm

Achromatic Lens System

Chromatic aberration is caused by a lens having a different refractive index for different wavelengths of light (lens dispersion), meaning that different colors focus at different distances from the lens. Longitudinal and lateral chromatic aberration of a lens can be seen as "fringes" of color around the image.

Chromatic aberration of a single lens causes different wavelengths of light to have differing focal lengths.

An achromatic doublet has the same focal length for red and blue light.

As can be seen above, chromatic aberration can be minimized by using an Achromatic Lens or Achromat, in which special optical materials with differing dispersion are assembled together to form a compound lens.
