PEAK 1972 glass ruler

Product No.:: 4115151
On Stock:: Available! (approx. 2-3 days)
Stock:: pieces

Measuring length:

Add Calibration Certificate:

£ 153.27

excl. Shipping costs

Description

Description

Determining big distances with measuring magnifiers is only possible to a limited extent because of the length of the scales. To quickly and easily determine lengths and distances, the PEAK glass rulers are a perfect add-on.

When measuring lengths and distances, it is necessary to make sure that the scale is positioned parallel to the measured object, in order to avoid measuring errors. The scaling is 0.1mm.

For reading purposes: PEAK stand magnifier 1962 with the following characteristics

15x magnification
Scaling 0.1mm
Optics: achromatic, distortion-free
Visual field: 15mm
Cannot be focused

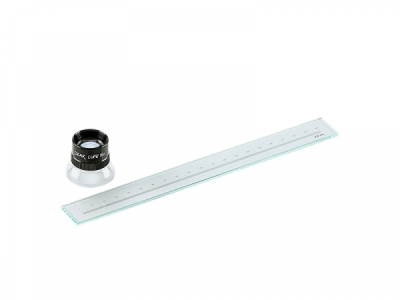

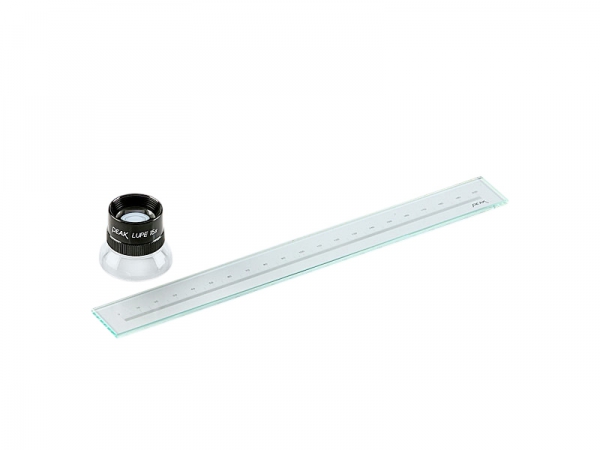

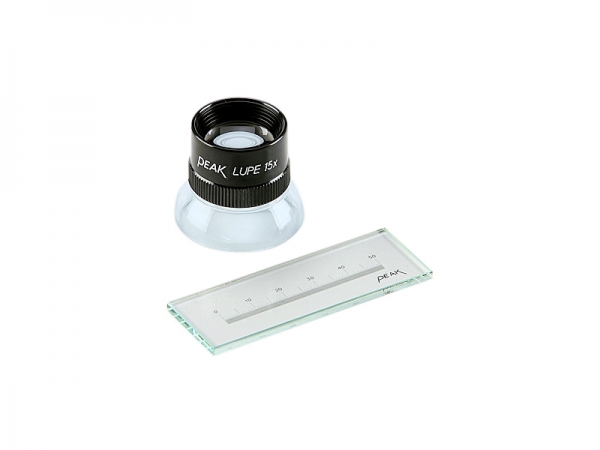

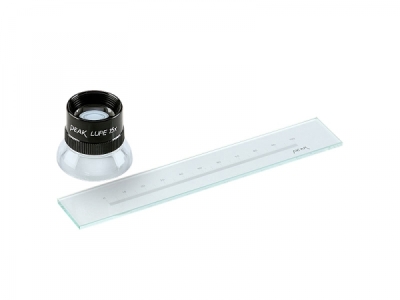

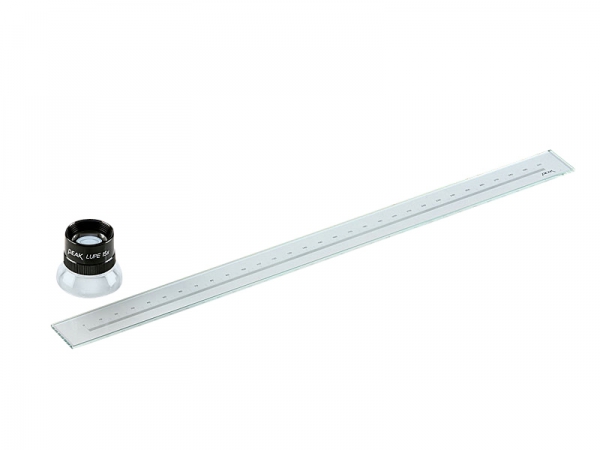

Delivered in an elegant transport box incl. PEAK stand magnifier 1962.
Five lengths (measuring range of the scale) of 50 mm, 100 mm, 200 mm, 300 mm and 400 mm are available.

Art. no.	Manufacturer no.	Measuring length	Glass body dimensions	Weight
4115151	PK1972-50	50 mm	80x25x2.8mm	31g
4115152	PK1972-100	100 mm	120x25x2,8mm	43g
4115153	PK1972-200	200 mm	220x25x2.8mm	62g
4115154	PK1972-300	300 mm	320x25x2.8mm	70g
4115155	PK1972-400	400 mm	420x25x2.8mm	78g
