Measuring scale for PEAK measuring microscope 2008 series

Measuring scale for PEAK measuring microscope 2008 series

Name: Measuring scale for PEAK measuring microscope 2008 series
Price: 15.99 GBP
Availability: InStock

Magnification/Unit/Add-on:

£ 15.99

Description

Scale with black writing for measurements on light-colored backgrounds
The glass scale is incorporated in a plastic ring, with which the scale can be rotated inside of the microscope
The scales can simply be changed by unscrewing the upper part of the microscope.
The image is reversed.

Art. no.	PEAK Scale	Magnification	Measuring length in mm or Inch (")	Scaling in mm or inch (")	Additional

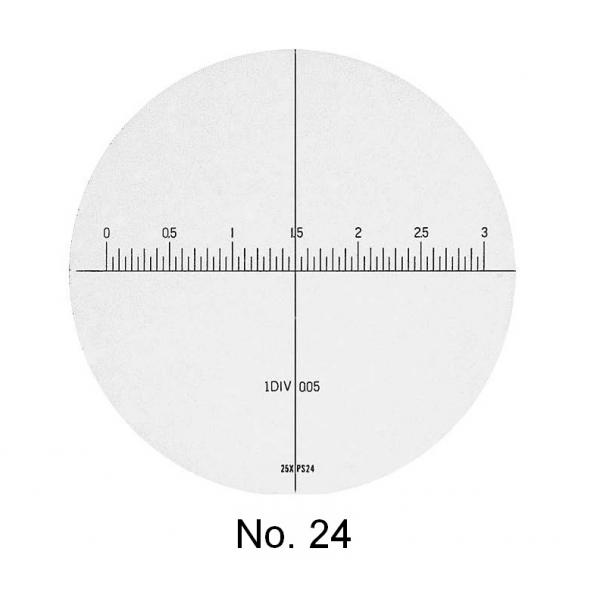

97006	24	25x	3.0 mm	0.05 mm

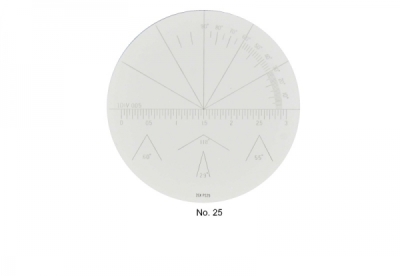

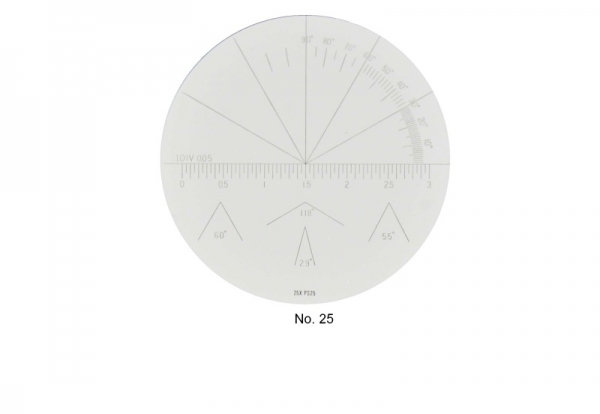

97010	25	25x	3.0 mm	0.05 mm	Different angle divisions

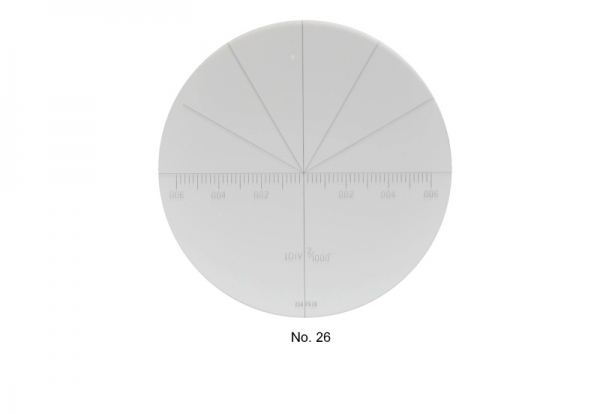

97015	26	25x	0.12 "	2/1000 "	Angle divisions

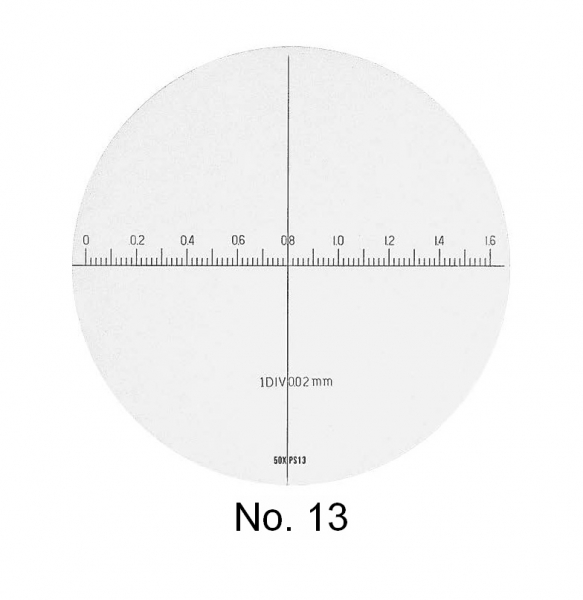

97007	13	50x	1.6 mm	0.02 mm

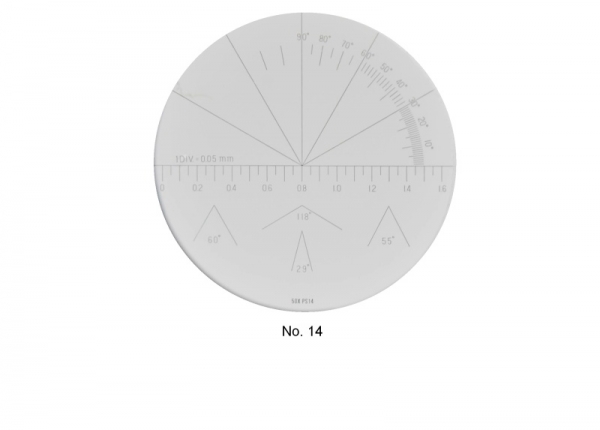

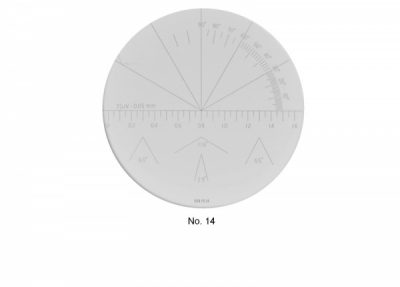

97012	14	50x	1.6 mm	0.05 mm	Different angle divisions

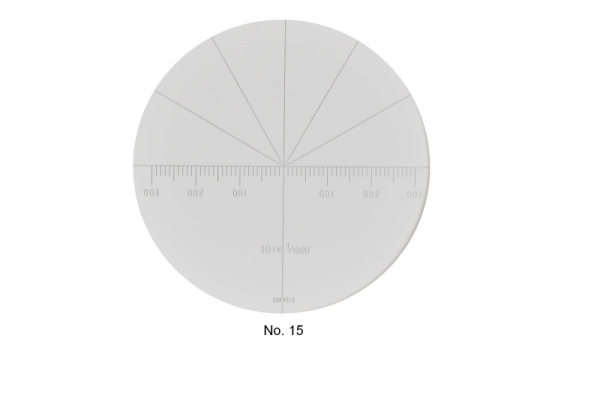

97015	15	50x	0.6 "	1/1000 "	Angle divisions

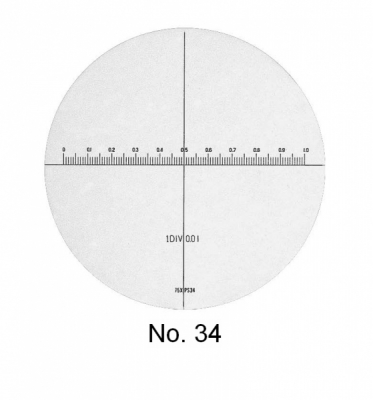

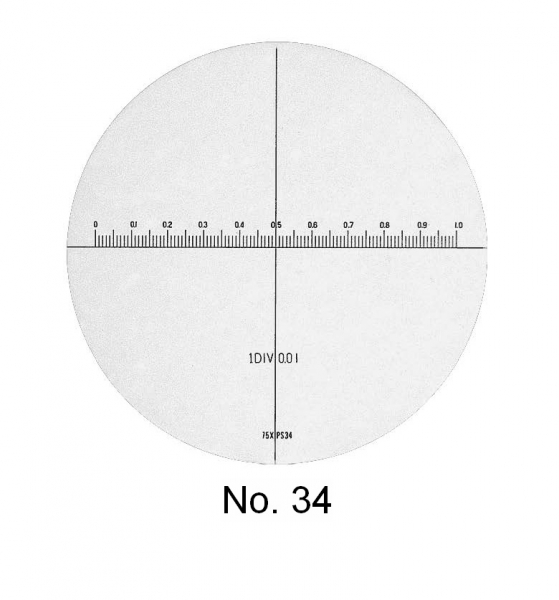

97008	34	75x	1.0 mm	0.01 mm

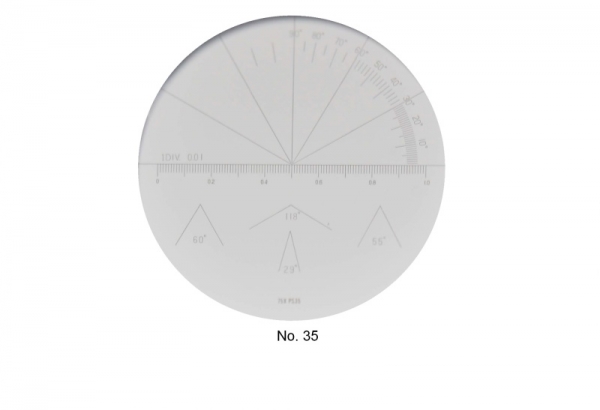

97013	35	75x	1.0 mm	0.01 mm	Different angle divisions

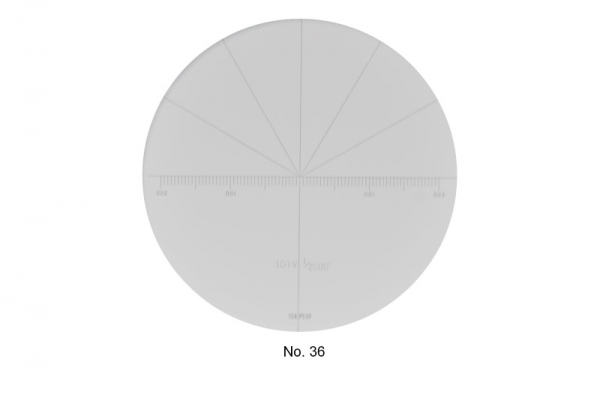

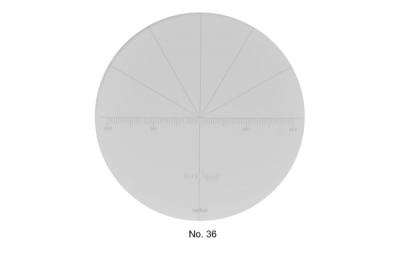

97017	36	75x	0.04 "	1/1000 "	Angle divisions

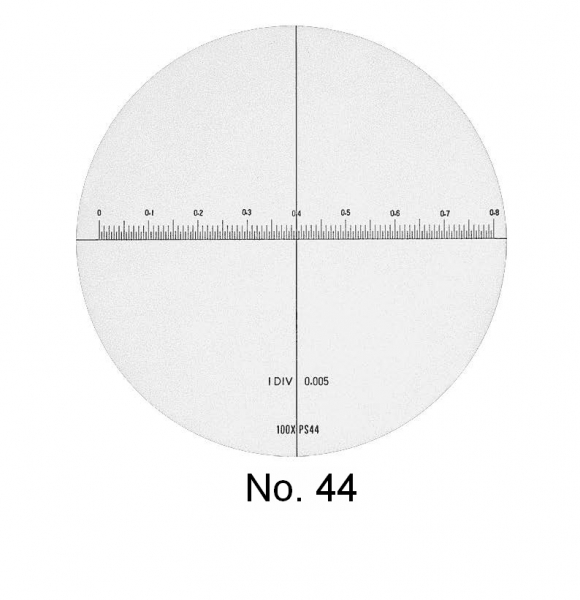

97009	44	100x	0.8 mm	0.005 mm

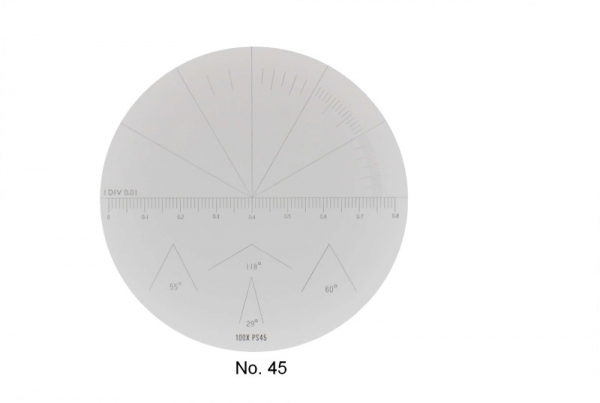

97014	45	100x	0.8 mm	0.01 mm	Different angle divisions

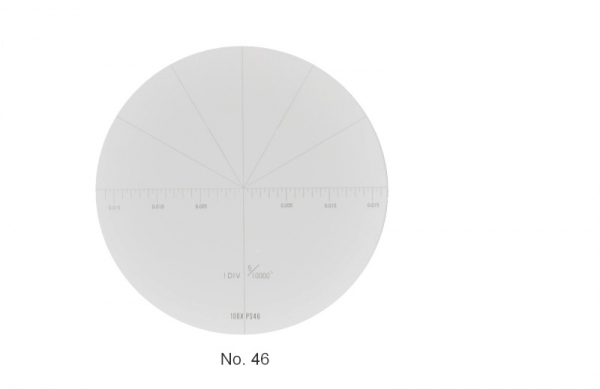

97018	46	100x	0.03 "	5/10000 "	Angle divisions
