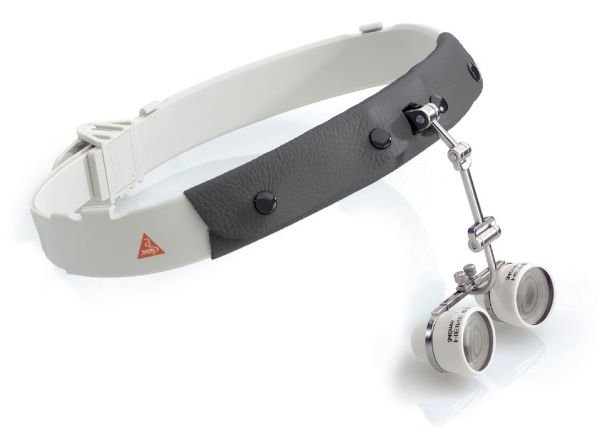

Heine C 2.3x k with Headband

On Stock:
Available! Available! (approx. 2-3 days)
Optional:
No Options Please
Protective Lenses, Product No.: C-000.32097 ( +£ 9.20 )
Working Distance:
340 mm, Product No.: 1102103
450 mm, Product No.: 1102104

This is the lightweight and low-cost Heine binocular loupe. Its 2.3x magnification makes it ideal for minor surgery procedures. The headband solution is also a practical  solution for the spectacle-wearer.

Please Note: To power the optional HEINE LED LoupeLight® you need BETA Handles - click here

Technical Description

  • Crisp, clear images.
    Multi-coated, scratch-resistant silica glass lenses produce crisp, clear images (high resolution).
  • Flexibility for precise adjustment.
    Independently adjustable PD controls ensure precise alignment of the optics - allows optimised view for any user without straining your eyes.
  • Super lightweight and comfortable - only 46g
    Light weight metal frame.
  • Low profile design.
    Compact, low profile optics allow the user to easily look over the loupes for non-magnified view.
  • Spring-loaded temples will adjust to the user's anatomy.
    Flexible coil temples wrap-around to fit the users anatomy securely and comfortably.

  • Working distance.
    340mm (13 inches) or 450 mm (18 inches)
    - choose below
  • Field of View
    110 or 130 mm (see specifications)

    Important information for those who wear glasses:

    The C 2.3 K Series loupe can also be worn without the use of spectacles. Should you prefer to examine without glasses, the charts (in Specifications) illustrate how your refractive error will affect the loupe working distance. If you are unsure of your prescription, please consult your eye care provider.

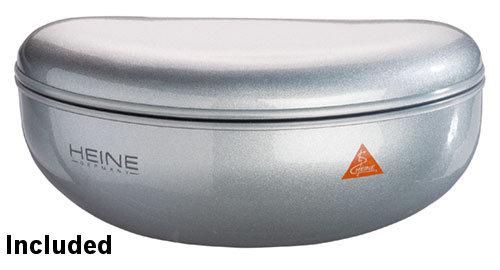

    Delivered to you complete with its hard shell protective case including a micro-fibre cleaning cloth.

Magnification 2.3x

Nominal
Working
distance
     Field of view    Depth of view
340 mm       110 mm              120 mm
420 mm       130 mm              190 mm


C 2.3/340mm
User’s refractive error/
Effective working distance
+2 ––––––––––––––––––––– 440 mm
+1 ––––––––––––––––––––390 mm
0 –––––––––––––––––– 340 mm
- 1 –––––––––––––––––300 mm
- 2 –––––––––––––––270 mm

C 2.3/450mm
User’s refractive error/
Effective working distance
+2 –––––––––––––––––––– 670 mm
+1 –––––––––––––––––––560 mm
0 ––––––––––––––––– 450 mm
-1 ––––––––––––––––420 mm
-2 ––––––––––––––370 mm

Important information for those who wear glasses:

The C 2.3 K Series loupe can also be worn without the use of spectacles. Should you prefer to examine without glasses, the charts illustrate how your refractive error will affect the loupe working distance. If you are unsure of your prescription, please consult your eye care provider.

Heine guarantee

We

Heine Optotechnik is the leading European manufacturer of professional medical diagnostic equipment. They develop and build the best quality diagnostic instruments possible for the medical profession. For over sixty years they have been working closely with physicians and university to offer you products that are not only reliable and durable, but provide new and better diagnostic capabilities for the practitioner.




Safety Information

Range of applications:

The HEINE C 2.3 K Headband Loupes are used for magnification during examination and operations.
Safety in use:
Do not look directly into the sun or at a powerful light source when using the Headband Loupes!

Adjustment
To obtain the best results you should adjust the instrument as follows:
Adjusting the headband: To adjust the size of the headband, press the lever (1) to increase and pull the free end(2) to decrease the circumference.
Adjusting headband height:
The position of the optics is adjusted over a wide range by means of the hinged mount. The ease of movement of the hinges can be adjusted by means of the hinge screws.

Obtaining a clearly-focused single image
– Unscrew both adjuster screws just enough to let you slide the eyepieces in or out.
– Put on the headband and adjust the eyepieces to the correct height and look at a well-lit object at the working distance (a printed text is not suitable as object)
– Adjust the oculars sideways until you see a shadow-free round image which is sharply-focused.
– Lightly tighten both adjuster screws without changing the position of the optics.
– Take off the headband and check that the inter-pupillary distance shown on the scale is symmetrical. Correct this if necessary by adjusting both adjuster screws to give a symmetrical setting
– Re-tighten the adjuster screws.










For more information, please visit the home page for this product.
