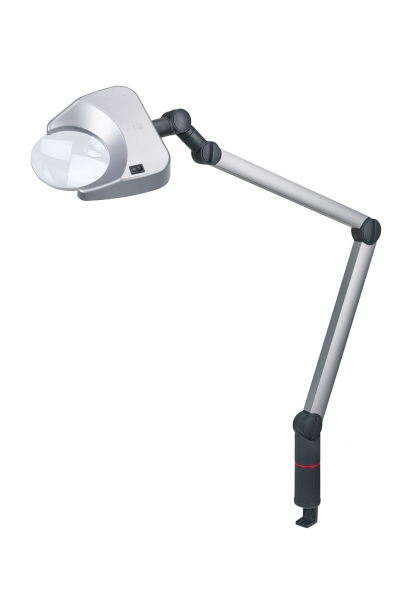

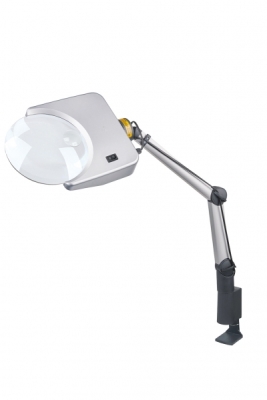

Tech-Line LED magnifier lamps (1.75x 202mm)

On Stock:
Available! Available! (approx. 2-3 days)
Colour Temperature:
2700 K (warm-white), Product No.: 2601011
4500K (neutral-white), Product No.: 2601012
6500K (cold-white), Product No.: 2601013

World Class Optics Made in Germany

Special design of the magnifier head:
A scratch-resistant glass lens open to the front allows for a very comfortable work posture as the field of vision is not limited by the edge of the magnifier head (as is usually the case in versions with ring lighting). Thus, it is also considerably easier to position the objects to be viewed underneath the lens as you can clearly see past it (peripheral orientation).

The new generation of LED magnifier lamps:


  • Coated aluminum arm in two parts with adjustable plastic joints and spring-compensating mechanical components (work radius of approximate 1 m)
  • Magnification: 1.75x
  • Lens diameter of 202 mm
  • High-contrast (very sharp), scratch-resistant optics
  • 3 LED Temperatures/Colours to choose from:
  • Warm-white [2700 K], Neutral-white [4500 K] and Cold-white [6500 K]
  • Integral LED lighting with 6 x 1 Watt power LEDs for bright and very high contrast lighting of the observation area, combined with a minimum of power consumption and a service life of up to 25,000 h of light.
  • Tilting the head of the magnifying glass allows for slanted lighting - the shadow caused by this is very helpful when checking for cracks/tears.

    Available Magnifications: 1.75x Details Above in Specifications.
    Please choose your Magnification below.

Art No.   Magnification  Diametre    Lens Type    LED
2601011   1.75x               202 mm       planconx.     2700 K
2601012   1.75x               202 mm       planconx.     4500 K
2601013   1.75x               202 mm       planconx.     6500 K

High Professional Product Made in Germany
  • Housing/Base
    Low reflection surface
  • Lens/Optics
    Silicate Glass
    Scratch resistant
    High resolution (sharpness)
    High contrast image

  • Coating
    Resistant to hand perspiration
    Resistant to chemical/solvents
    Scratch resistant two-component coating
  • Magnification

Tech-Line is synonymous with technically sophisticated products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use.

Discover the variety
By developing the Tech-Line series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.

The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.

Additional performance:
  • High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
  • The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
    - All magnifiers with a silver coating are coated with a special 2-component-coating:
      Resistant to hand perspiration.
      Resistant to nearly all solvents/chemicals.
      Very hard and plane surface, scratch-resistant and easy to clean.

  • Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs (light colour approx. 6000 K).
