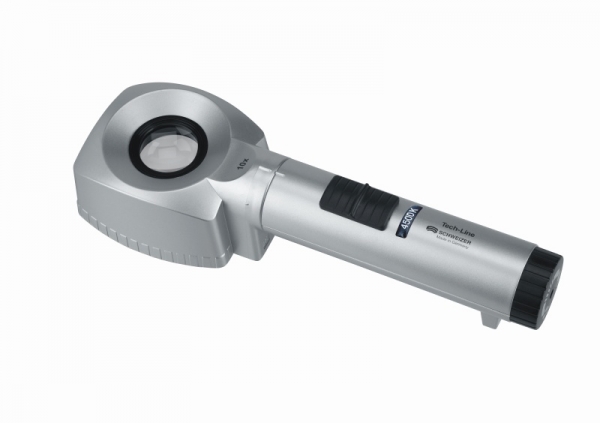

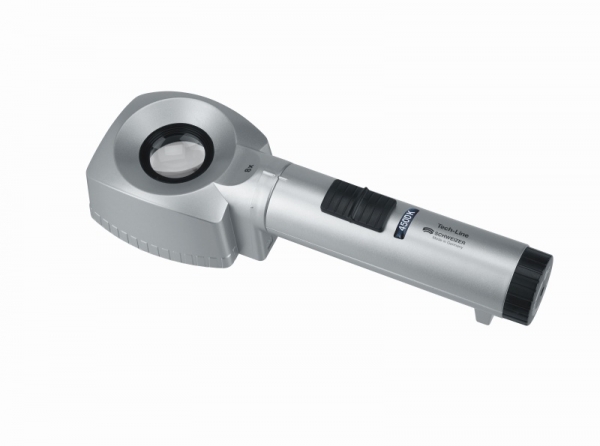

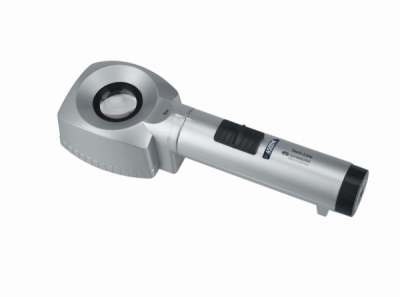

Tech-Line illuminated Stand Magnifier
Tech-Line illuminated Stand Magnifier
Preview: Tech-Line illuminated Stand Magnifier
Preview: Tech-Line illuminated Stand Magnifier
Tech-Line illuminated Stand Magnifier
Tech-Line illuminated Stand Magnifier
Tech-Line illuminated Stand Magnifier
Mobile Preview: Tech-Line illuminated Stand Magnifier
Mobile Preview: Tech-Line illuminated Stand Magnifier

Tech-Line illuminated Stand Magnifier

Product No.:
3504010
Available! Available! (approx. 2-3 days)
£ 105.11

excl. Shipping costs

Description

World Class Optics Made in Germany

Comfortable handling thanks to steady positioning. Particularly for planar inspections.

Features

Equipped with an aplanatic, respectively an aspherical lens system at lower magnification, the LED stand magnifier fulfills highest optical requirements! The optics are made from silicate glass, which is very scratch-resistant, has a very high resolution (very sharp!) and produces an extremely high contrast image.

The housing is coated with a special 2-component coating, which is also scratch-resistant. Additionally, this coating is resistant to hand perspiration and nearly all chemicals and solvents. A long-life high-performance LED with a lighting colour of approximately 4500 completes this magnifier.

4x Ø 55m, 8x 30mm and 10x 30mm magnifications available. See above for specifications.

Specifications


Art.nr.   Magnification Diametre Ø Lens Type​
3504010; 3504011; 3504012 4x 55.0mm aspheric
3508010; 3508011; 3508012 8x 30.0mm aplanatic
3510010; 3510011; 3510012 10x 30.0mm aplanatic

Summary
High Professional Product Made in Germany
LED
  • High performance LED
  • Housing/Casing
  • Shock resistant
  • Resistant to hand perspiration
  • Resistant to chemical/solvents
  • Scratch-resistant two-component coating
Lens/Optics
  • Aplanatic lens-system
  • Aspheric lens (4x)
  • Scratch-resistant
  • High resolution (very high sharpness)
  • High contrast image
About Tech-Line

Tech-Line is synonymous with technically sophisticated products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use. The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.

Discover the variety

By developing the Tech-Line series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.

  • High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
  • The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
  • All magnifiers with a silver coating are coated with a special 2-component-coating: Resistant to hand perspiration. Resistant to nearly all solvents/chemicals. Very hard and plane surface, scratch-resistant and easy to clean.
  • Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs
