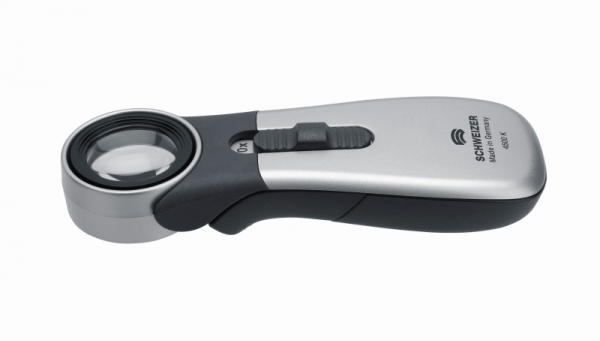

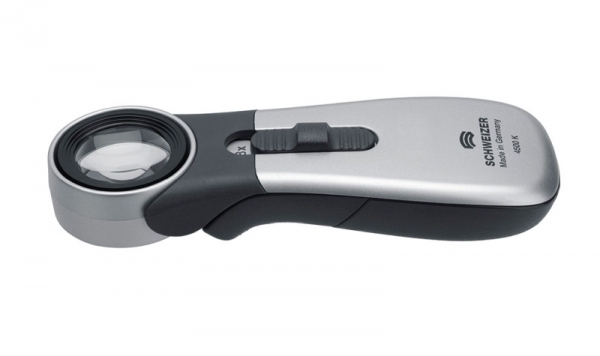

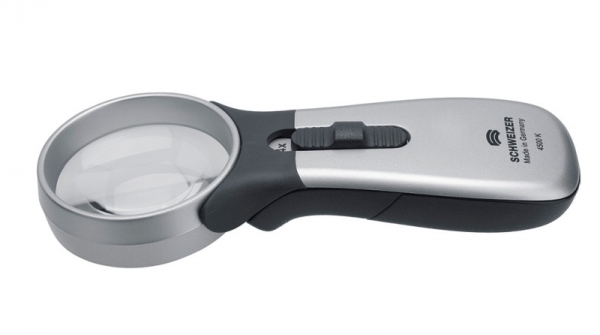

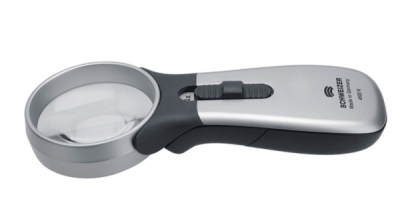

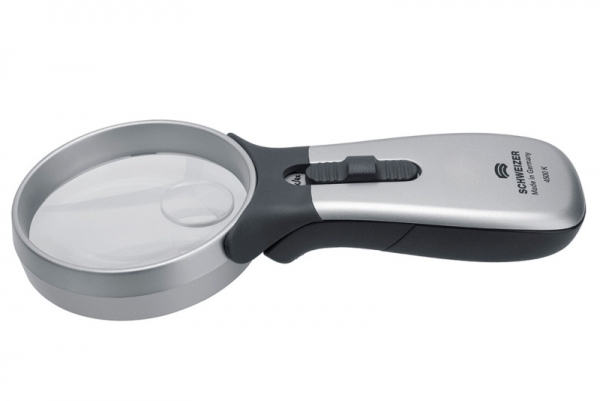

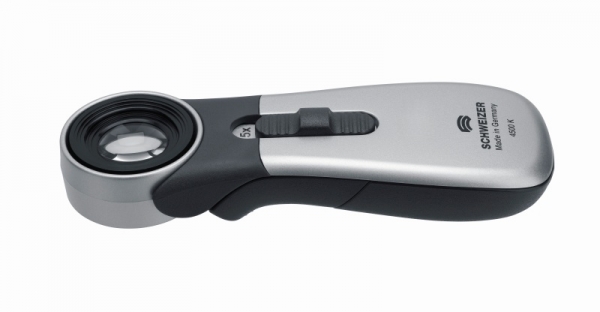

Tech-Line LED Magnifier Series

Product No.:: 1992013
On Stock:: Available! (approx. 2-3 days)
Stock:: pieces

Magnification:

£ 81.87

excl. Shipping costs

Description

This magnifier combines technological perfection and ergonomic handling. Ideal for mobile and diverse uses.

Contrasted and homogenous light by optimally adjusting the light intensity: high-performance SMD LEDs (2700K - warm white; 4500K - neutral white; 6500K - cold white)
2-level boost switch to optimize/increase the illumination, with audio signals and haptic use.
Low energy use, ca. 7 hours operating life (boost switch), ca. 3 hours charging time (if battery is completely discharged)
Ergonomic design, grippy soft-touch handle area and comfortable-to-use buttons
Equipped with an aplanatic or respectively a bifocal or aspheric lens system in case of low magnification, this Tech-Line handheld illuminated magnifier fulfills the highest optical standards!
The silicate glass lenses are not only scratch-proof, but also have a high depth field and help you obtain an extremely contrasted image.
The frame is low-glare and shock-resistant.
The housing is coated with a special 2-component finish, which is also scratch-proof. Moreover, this finish is sweat-proof and resistant to most chemicals and solvents.
3 alkaline manganese batteries (micro type) are included with delivery.

Here are the different models available:

Art. no.	Magni- fication	Lens dimensions Ø	Lens type
1992017; 1992013; 1992018	2x/4x	70mm/22mm	bifocal
1904017; 1904013; 1904018	4x	55.0mm	asphärisch
1908017; 1908013; 1908018	8x	30.0mm	aplanatisch
1910017; 1910013; 1910018	10x	22.8mm	aplanatisch
1915017; 1915013; 1915018	15x	16.3mm	aplanatisch

The magnifier from the Tech-Line series have aplanatic lenses. The optical effect of this lens type can be seen on the following graph (from Joachim Bäcker, 2006)
Made in Germany!

You can also order the appropriate case for the magnifier (selection under the article)

Image source: A. Schweizer GmbH

Magnifier Art. no.	Magni- fication	Case Art. no.	Case
1992017; 1992013; 1992018	2x/4x	93008	intermediate
1904017; 1904013; 1904018	4x	93008	intermediate
1908017; 1908013; 1908018	8x	93007	small
1910017; 1910013; 1910018	10x	93007	small
1915017; 1915013; 1915018	15x	93007	small

About Tech-Line

About Tech-Line
By developing the Tech-Line product series, a new highly modern magnifier generation came into being, which combines the following characteristics. This magnifier series is especially ideal to use in workshops, but it can also be perfect in many other fields.
Added performance:

High-quality, aplanatic silicate glass lenses. For low magnification fields, biconvex/bifocal lenses.
The lenses made out of silicate glass were 100% made in Germany. Not only do they have great optical qualities, but they are also highly scratch-proof (especially in comparison to plastic lenses).
All lenses with silver finish were coated with a special 2-component varnish, which has the following properties:
- Resistance to hand perspiration
- Resistance to all chemicals
- Very hard and smooth surfaces, therefore scratch-proof and easy to clean
Green, energy-saving and extremely durable high-performance LEDs (light color ca. 6000K).
