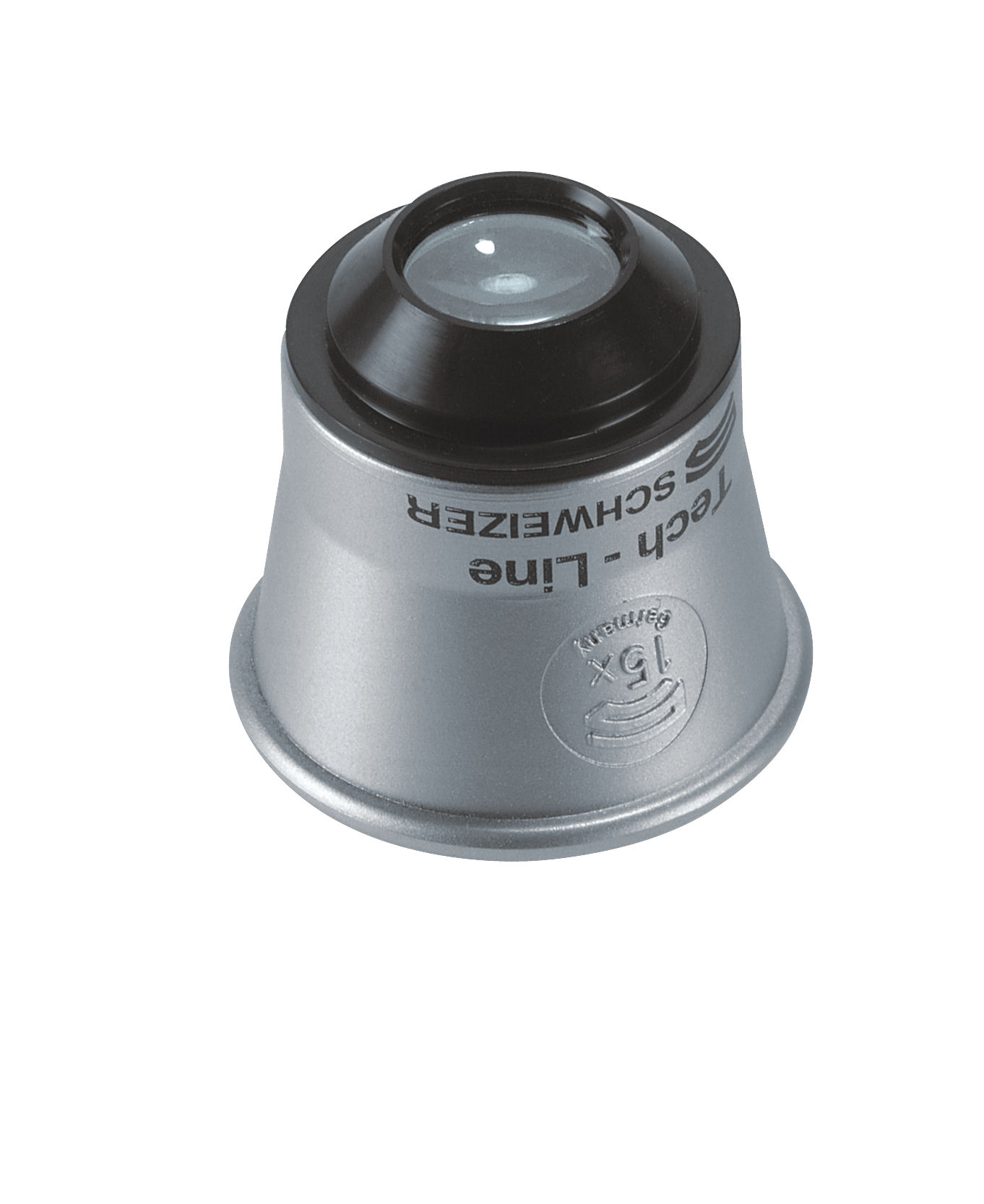

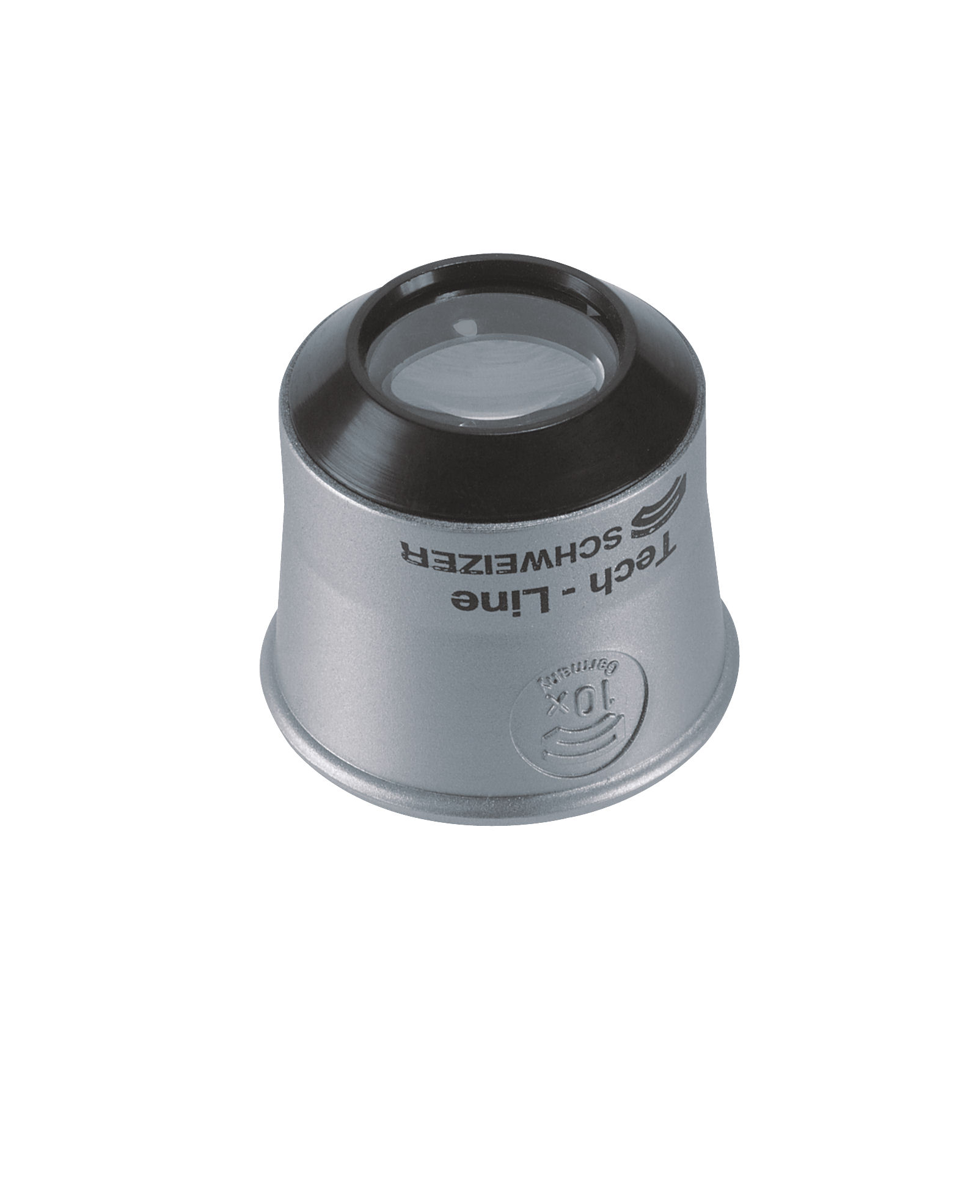

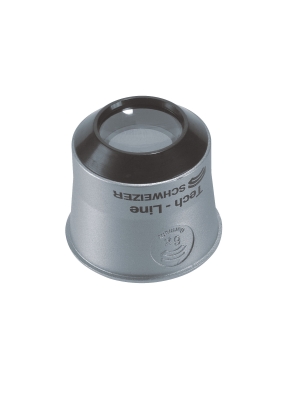

Tech-Line watchmaker's magnifier
World Class Optics Made in Germany
Available Magnifications: 6x 8x, 10x or 15x. Specifications above. The aplanatic lens system has turned what is normally an apparently simple magnifying glass into a fantastic inspection tool with unbeatable optics.
Features:
Equipped with an aplanatic lens system, the Tech-Line watchmaker's magnifier fulfills the highest optical requirements. The lens is made from silicate glass, which is very scratch-resistant, has a very high resolution (very sharp) and produces an extremely high contrast image. Schweizer uses a UV absorbent optical crown as used with prescription lenses (refractive index n=1.52).
The housing is shock-resistant and has a low-reflection surface. It is also coated with a special 2-component coating, which makes it scratch-resistant. Additionally, this coating is resistant to hand perspiration and nearly all chemicals and solvents.

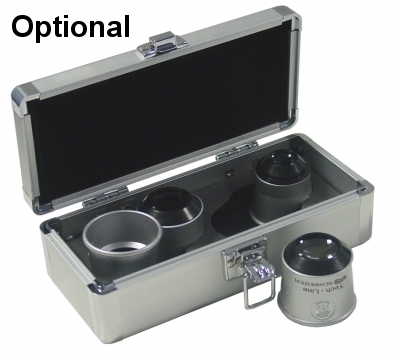

Professional Set available - click here.
Available Magnifications: 6x 8x, 10x or 15x. Specifications above. The aplanatic lens system has turned what is normally an apparently simple magnifying glass into a fantastic inspection tool with unbeatable optics.
Features:
Equipped with an aplanatic lens system, the Tech-Line watchmaker's magnifier fulfills the highest optical requirements. The lens is made from silicate glass, which is very scratch-resistant, has a very high resolution (very sharp) and produces an extremely high contrast image. Schweizer uses a UV absorbent optical crown as used with prescription lenses (refractive index n=1.52).
The housing is shock-resistant and has a low-reflection surface. It is also coated with a special 2-component coating, which makes it scratch-resistant. Additionally, this coating is resistant to hand perspiration and nearly all chemicals and solvents.
Professional Set available - click here.
Art No. Magni. Diametre Lens Type
09706 6x 22.8 mm aspheric/glass
09708 8x 22.8 mm aplanatic/glass
09510 10x 22.8 mm aplanatic/glass
09515 15x 16.3 mm aplanatic/glass
Mag. / Working distance / Field of view
6x 30mm 22mm
8x 25mm 20mm
10x 20mm 18mm
15x 10mm 13mm
High Professional Product Made in Germany
- Housing/Base
Scratch resistant
Low reflection surface
Shock resistant
- Lens/Optics
Aplanatic lens-system
Silicate Glass
Scratch resistant
High resolution (sharpness)
- Magnification
6x, 8x 10x or 15x
Tech-Line is synonymous with technically demanding products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use.
Discover the variety
By developing the Tech-Line series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.
The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.
Additional performance:
- High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
- The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
- All magnifiers with a silver coating are coated with a special 2-component-coating:
Resistant to hand perspiration.
Resistant to nearly all solvents/chemicals.
Very hard and plane surface, scratch-resistant and easy to clean.
- Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs (light colour approx. 6000 K).
